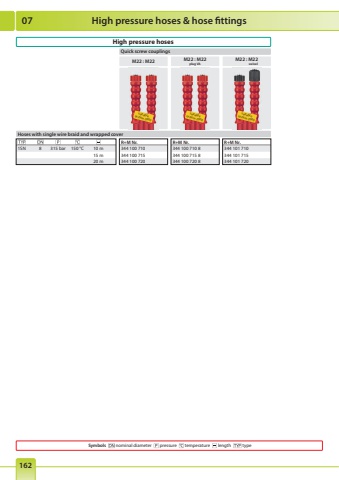

07162High pressure hoses & hose fittingsR+M Nr. 344 100 710344 100 715344 100 720R+M Nr.344 101 710344 101 715344 101 720R+M Nr. 344 100 710 8344 100 715 8344 100 720 81SN 8 315 bar 150 %u00b0C 10 m15 m20 mM22 : M22 M22 : M22plug VAQuick screw couplingsM22 : M22 swivelHoses with single wire braid and wrapped coversuitable system 2000suitable system 2000suitable system 2000High pressure hosesSymbols nominal diameter pressure temperature length type
