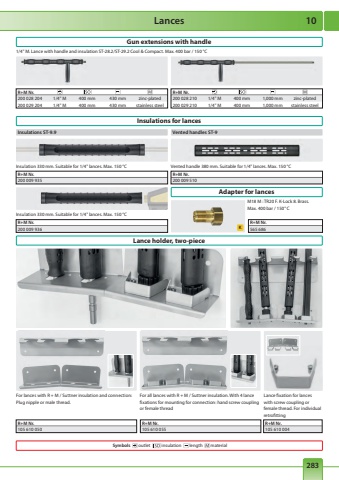

28310KSymbols outlet insulation length materialLancesR+M Nr.200 009 510R+M Nr.200 009 935Insulation 330 mm. Suitable for 1/4\Vented handle 380 mm. Suitable for 1/4\Vented handles ST-9Insulations for lancesAdapter for lancesInsulations ST-9.9R+M Nr.200 009 936Insulation 330 mm. Suitable for 1/4\M18 M : TR20 F. K-Lock 8. Brass. Max. 400 bar / 150%u00b0 CR+M Nr.565 686Gun extensions with handle1/4\R+M Nr.200 028 204 1/4\400 mm 430 mm zinc-plated200 029 204 1/4\400 mm 430 mm stainless steelR+M Nr.200 028 210 1/4\400 mm 1,000 mm zinc-plated200 029 210 1/4\400 mm 1,000 mm stainless steelR+M Nr.105 610 055 R+M Nr.105 610 004 R+M Nr.105 610 050 For lances with R + M / Suttner insulation and connection: Plug nipple or male thread.For all lances with R + M / Suttner insulation. With 4 lance fixations for mounting for connection: hand screw coupling or female threadLance fixation for lances with screw coupling or female thread. For individual retrofittingLance holder, two-piece
