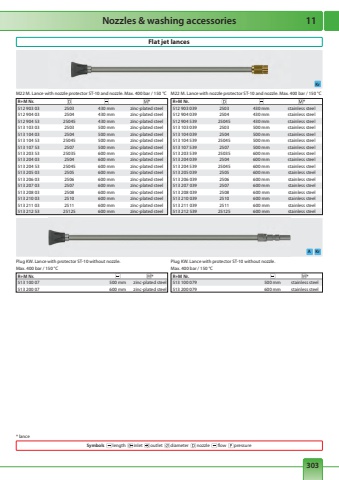

30311KrA KrNozzles & washing accessoriesSymbols length inlet outlet diameter nozzle flow pressure* lanceFlat jet lancesR+M Nr. *512 903 03 2503 430 mm zinc-plated steel512 904 03 2504 430 mm zinc-plated steel512 904 53 25045 430 mm zinc-plated steel513 103 03 2503 500 mm zinc-plated steel513 104 03 2504 500 mm zinc-plated steel513 104 53 25045 500 mm zinc-plated steel513 107 53 2507 500 mm zinc-plated steel513 203 53 25035 600 mm zinc-plated steel513 204 03 2504 600 mm zinc-plated steel513 204 53 25045 600 mm zinc-plated steel513 205 03 2505 600 mm zinc-plated steel513 206 03 2506 600 mm zinc-plated steel513 207 03 2507 600 mm zinc-plated steel513 208 03 2508 600 mm zinc-plated steel513 210 03 2510 600 mm zinc-plated steel513 211 03 2511 600 mm zinc-plated steel513 212 53 25125 600 mm zinc-plated steelR+M Nr. *513 100 07 500 mm zinc-plated steel513 200 07 600 mm zinc-plated steelR+M Nr. *512 903 039 2503 430 mm stainless steel512 904 039 2504 430 mm stainless steel512 904 539 25045 430 mm stainless steel513 103 039 2503 500 mm stainless steel513 104 039 2504 500 mm stainless steel513 104 539 25045 500 mm stainless steel513 107 539 2507 500 mm stainless steel513 203 539 25035 600 mm stainless steel513 204 039 2504 600 mm stainless steel513 204 539 25045 600 mm stainless steel513 205 039 2505 600 mm stainless steel513 206 039 2506 600 mm stainless steel513 207 039 2507 600 mm stainless steel513 208 039 2508 600 mm stainless steel513 210 039 2510 600 mm stainless steel513 211 039 2511 600 mm stainless steel513 212 539 25125 600 mm stainless steelR+M Nr. *513 100 079 500 mm stainless steel513 200 079 600 mm stainless steelM22 M. Lance with nozzle protector ST-10 and nozzle. Max. 400 bar / 150 %u00b0CPlug KW. Lance with protector ST-10 without nozzle. Max. 400 bar / 150 %u00b0CM22 M. Lance with nozzle protector ST-10 and nozzle. Max. 400 bar / 150 %u00b0CPlug KW. Lance with protector ST-10 without nozzle. Max. 400 bar / 150 %u00b0C
