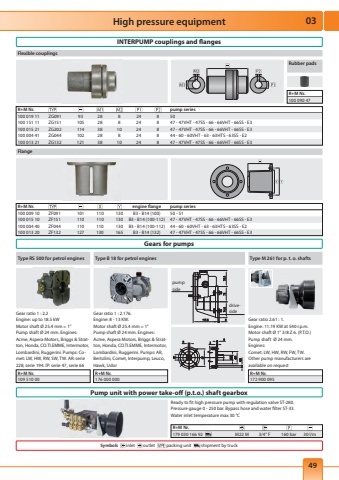

0349High pressure equipmentFlexible couplingsINTERPUMP couplings and flangesFlangeRubber pads R+M Nr. engine flange pump series100 009 10 ZF091 101 110 130 B3 - B14 (100) 50 - 51100 015 10 ZF151 110 110 130 B3 - B14 (100-112) 47 - 47VHT - 47SS - 66 - 66VHT - 66SS - E3100 004 40 ZF044 110 110 130 B3 - B14 (100-112) 44 - 60 - 60VHT - 63 - 63HTS - 63SS - E2100 013 20 ZF132 127 130 165 B3 - B14 (132) 47 - 47VHT - 47SS - 66 - 66VHT - 66SS - E3R+M Nr. pump series100 019 11 ZG091 93 28 8 24 8 50100 151 11 ZG151 105 28 8 24 8 47 - 47VHT - 47SS - 66 - 66VHT - 66SS - E3100 015 21 ZG202 114 38 10 24 8 47 - 47VHT - 47SS - 66 - 66VHT - 66SS - E3100 004 41 ZG044 102 28 8 24 8 44 - 60 - 60VHT - 63 - 63HTS - 63SS - E2 100 013 21 ZG132 121 38 10 24 8 47 - 47VHT - 47SS - 66 - 66VHT - 66SS - E3R+M Nr.100 090 47drivesidepump sideGear ratio 1 : 2.176. Engine: 8 - 13 KW. Motor shaft %u00d8 25.4 mm = 1\Pump shaft %u00d8 24 mm. Engines: Acme, Aspera Motors, Briggs & Stratton, Honda, CO.TI.EMME, Intermotor, Lombardini, Ruggerini. Pumps: AR, Bertolini, Comet, Interpump, Leuco, Hawk, UdorGears for pumpsR+M Nr.176 000 000R+M Nr.109 510 00R+M Nr.172 900 095Type RS 500 for petrol engines Type B 18 for petrol enginesGear ratio 1 : 2.2Engine: up to 18.5 kWMotor shaft %u00d8 25.4 mm = 1\Pump shaft %u00d8 24 mm. Engines: Acme, Aspera Motors, Briggs & Stratton, Honda, CO.TI.EMME, Intermotor, Lombardini, Ruggerini. Pumps: Comet: LW, HW, RW, SW, TW. AR: serie 228, serie 194. IP: serie 47, serie 66Type M 261 for p. t. o. shaftsGear ratio 2.61 : 1. Engine: 11.19 KW at 540 r.p.m. Motor shaft %u00d8 1\Pump shaft %u00d8 24 mm. Engines: Comet: LW, HW, RW, FW, TW. Other pump manufacturers are available on requestPump unit with power take-off (p.t.o.) shaft gearboxReady to fit high pressure pump with regulation valve ST-280. Pressure gauge 0 - 250 bar. Bypass hose and water filter ST-33. Water inlet temperature max 30 %u00b0CR+M Nr. 179 030 166 92 M22 M 3/4\160 bar 30 l/mSymbols inlet outlet packing unit shipment by truck
