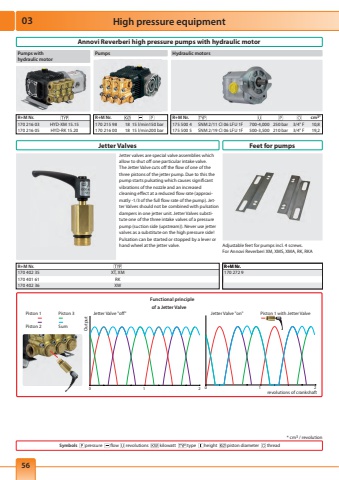

03560 1 20 1 20 1 20 1 2 1 2 1 20 1 20 1 2R+M Nr. 170 215 98 18 15 l/min150 bar170 216 00 18 15 l/min200 barR+M Nr. 170 216 03 HYD-XM 15.15170 216 05 HYD-RK 15.20Annovi Reverberi high pressure pumps with hydraulic motorHigh pressure equipmentR+M Nr.170 272 9R+M Nr. 170 402 35 XT, XM170 401 61 RK170 402 36 XWAdjustable feet for pumps incl. 4 screws. For Annovi Reverberi XM, XMS, XMA, RK, RKAJetter valves are special valve assemblies which allow to shut off one particular intake valve. The Jetter Valve cuts off the flow of one of the three pistons of the jetter pump. Due to this the pump starts pulsating which causes significant vibrations of the nozzle and an increased cleaning effect at a reduced flow rate (approximatly -1/3 of the full flow rate of the pump). Jetter Valves should not be combined with pulsation dampers in one jetter unit. Jetter Valves substitute one of the three intake valves of a pressure pump (suction side (upstream)). Never use jetter valves as a substitute on the high pressure side! Pulsation can be started or stopped by a lever or hand wheel at the jetter valve. Feet for pumpsR+M Nr.170 272 9Pumps with Pumps Hydraulic motorshydraulic motorJetter Valves* cm3 / revolution Functional principle of a Jetter Valve 12Piston 1 Jetter Valve \Jetter Valve \Piston 1 with Jetter Valve Piston 2Piston 3revolutions of crankshaftSum OutputSymbols pressure flow revolutions kilowatt type height piston diameter threadR+M Nr. cm3*175 500 4 SNM 2/11 CI 06 LFU 1F 700-4,000 250 bar 3/4\10,8175 500 5 SNM 2/19 CI 06 LFU 1F 500-3,500 210 bar 3/4\19,2
