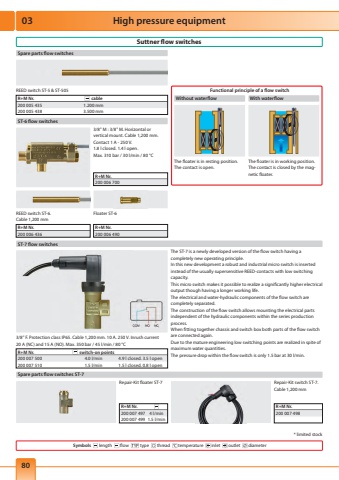

0380ST-7 flow switches3/8\20 A (NC) and 15 A (NO). Max. 350 bar / 45 l/min / 80 %u00b0CR+M Nr. switch-on points200 007 500 4.0 l/min 4.9 l closed. 3.5 l open200 007 510 1.5 l/min 1.5 l closed. 0.8 l openREED switch ST-5 & ST-505REED switch ST-6. Cable 1,200 mmHigh pressure equipmentSpare parts flow switchesSpare parts flow switches ST-7Floater ST-6R+M Nr.200 007 497 4 l/min200 007 499 1.5 l/minRepair-Kit floater ST-7 Repair-Kit switch ST-7. Cable 1,200 mmR+M Nr.200 006 436R+M Nr.200 006 490R+M Nr.200 007 498The ST-7 is a newly developed version of the flow switch having a completely new operating principle.In this new development a robust and industrial micro switch is inserted instead of the usually supersensitive REED-contacts with low switching capacity. This micro switch makes it possible to realize a significantly higher electrical output though having a longer working life. The electrical and water-hydraulic components of the flow switch are completely separated.The construction of the flow switch allows mounting the electrical parts independent of the hydraulic components within the series production process. When fitting together chassis and switch box both parts of the flow switch are connected again. Due to the mature engineering low switching points are realized in spite of maximum water quantities. The pressure drop within the flow switch is only 1.5 bar at 30 l/min.Without waterflow With waterflowThe floater is in resting position. The contact is open.The floater is in working position. The contact is closed by the magnetic floater. Functional principle of a flow switch3/8\vertical mount. Cable 1,200 mm. Contact 1 A - 250 V. 1.8 l closed. 1.4 l open. Max. 310 bar / 30 l/min / 80 %u00b0CST-6 flow switchesSuttner flow switchesR+M Nr.200 006 700R+M Nr. cable200 005 435 1.200 mm200 005 438 3.500 mmSymbols length flow type thread temperature inlet outlet diameter * limited stock
