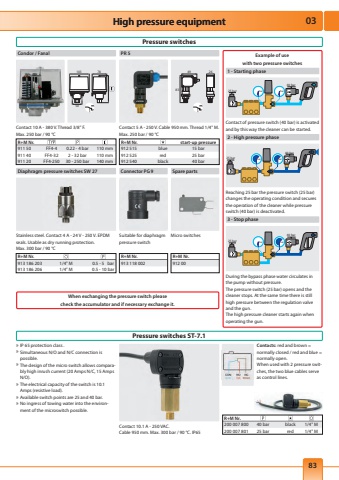

038325 bar 40 bar bar bar 25 bar 40 bar bar bar 25 bar 40 bar bar bar 50103 788349 26High pressure equipmentR+M Nr.911 50 FF4-4 0.22 - 4 bar 110 mm911 40 FF4-32 2 - 32 bar 110 mm911 20 FF4-250 30 - 250 bar 140 mm1 - Starting phase2 - High pressure phase3 - Stop phase Contact of pressure switch (40 bar) is activated and by this way the cleaner can be started.Reaching 25 bar the pressure switch (25 bar) changes the operating condition and secures the operation of the cleaner while pressure switch (40 bar) is deactivated.During the bypass phase water circulates in the pump without pressure. The pressure switch (25 bar) opens and the cleaner stops. At the same time there is still high pressure between the regulation valve and the gun. The high pressure cleaner starts again when operating the gun.Micro switchesSpare partsPressure switchesDiaphragm pressure switches SW 27 Connector PG 9R+M Nr. start-up pressure912 515 blue 15 bar912 525 red 25 bar912 540 black 40 barContact 5 A - 250 V. Cable 950 mm. Thread 1/4\Max. 250 bar / 90 %u00b0CContact 10 A - 380 V. Thread 3/8\Max. 250 bar / 90 %u00b0CStainless steel. Contact 4 A - 24 V - 250 V. EPDM seals. Usable as dry running protection. Max. 300 bar / 90 %u00b0CSuitable for diaphragm pressure switchExample of use with two pressure switchesWhen exchanging the pressure switch please check the accumulator and if necessary exchange it.Condor / Fanal PR 5R+M Nr.913 118 002R+M Nr.912 00R+M Nr.913 186 203 1/4\0.5 - 5 bar913 186 206 1/4\0.5 - 10 barPressure switches ST-7.1R+M Nr.200 007 800 40 bar black 1/4\200 007 801 25 bar red 1/4\Contact 10.1 A - 250 VAC.Cable 950 mm. Max. 300 bar / 90 %u00b0C. IP65%u00bb IP 65 protection class .%u00bb Simultaneous N/O and N/C connection is possible. %u00bb The design of the micro switch allows comparably high inrush current (20 Amps N/C, 15 Amps N/O).%u00bb The electrical capacity of the switch is 10.1 Amps (resistive load). %u00bb Available switch points are 25 and 40 bar.%u00bb No ingress of towing water into the environment of the microswitch possible.Contacts: red and brown = normally closed / red and blue = normally open. When used with 2 pressure switches, the two blue cables serve as control lines.
