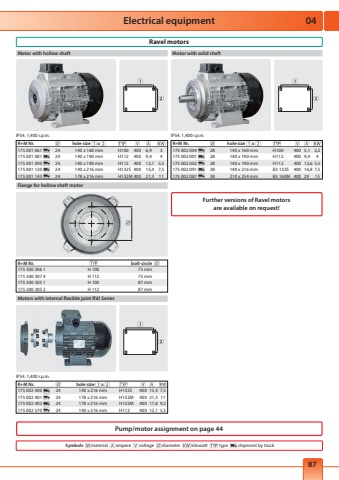

87Electrical equipment 04Symbols material ampere voltage diameter kilowatt type shipment by truckMotor with hollow shaftMotors with internal flexible joint RVJ SeriesMotor with solid shaft Further versions of Ravel motors are available on request!Pump/motor assignment on page 44IP54. 1,400 r.p.m.IP54. 1,400 r.p.m.IP54. 1,400 r.p.m.Ravel motorsR+M Nr. bolt-circle 175 300 306 1 H 100 75 mm 175 300 307 4 H 112 75 mm175 300 305 1 H 100 87 mm175 300 305 2 H 112 87 mmFlange for hollow shaft motorR+M Nr. hole size x 175 002 400 24 140 x 216 mm H132S 400 15,4 7,5175 002 401 24 178 x 216 mm H132M 400 21,3 11175 002 402 24 178 x 216 mm H132M 400 17,8 9,2175 002 570 24 140 x 216 mm H112 400 12,1 5,5R+M Nr. hole size x 175 001 061 24 140 x 160 mm H100 400 6,9 3175 001 081 24 140 x 190 mm H112 400 9,4 4175 001 090 24 140 x 190 mm H112 400 12,1 5,5175 001 120 24 140 x 216 mm H132S 400 15,4 7,5175 001 143 24 178 x 216 mm H132M 400 21,3 11R+M Nr. hole size x 175 002 004 28 140 x 160 mm H100 400 5,1 2,2175 002 001 28 140 x 190 mm H112 400 9,4 4175 002 002 28 140 x 190 mm H112 400 12,6 5,5175 002 091 38 140 x 216 mm B3 132S 400 16,8 7,5175 002 087 38 210 x 254 mm B3 160M 400 29 15
