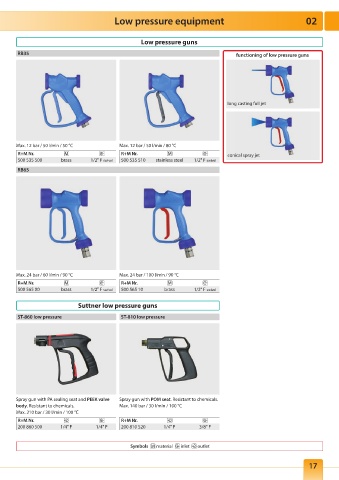

Low pressure equipment 02

Low pressure guns
RB35 functioning of low pressure guns

long casting full jet

Max. 12 bar / 50 l/min / 50 °C Max. 12 bar / 50 l/min / 80 °C
R+M Nr. R+M Nr. conical spray jet
500 535 500 brass 1/2" F swivel 500 535 510 stainless steel 1/2" F swivel
RB65

Max. 24 bar / 60 l/min / 90 °C Max. 24 bar / 100 l/min / 90 °C
R+M Nr. R+M Nr.
500 565 00 brass 1/2" F swivel 500 565 10 brass 1/2" F swivel

Suttner low pressure guns

ST-860 low pressure ST-810 low pressure

Spray gun with PA sealing seat and PEEK valve Spray gun with POM seat. Resistant to chemicals.
body. Resistant to chemicals. Max. 140 bar / 30 l/min / 100 °C
Max. 210 bar / 30 l/min / 100 °C
R+M Nr. R+M Nr.
200 860 500 1/4" F 1/4" F 200 810 520 1/4" F 3/8" F

Symbols material inlet outlet

17
