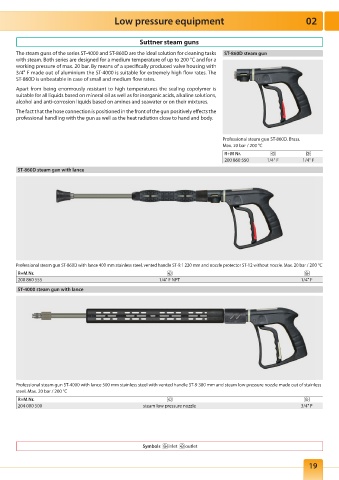

Page 20 - RM_2022

Low pressure equipment 02

Suttner steam guns
The steam guns of the series ST-4000 and ST-860D are the ideal solution for cleaning tasks ST-860D steam gun
with steam. Both series are designed for a medium temperature of up to 200 °C and for a
working pressure of max. 20 bar. By means of a specifically produced valve housing with
3/4" F made out of aluminium the ST-4000 is suitable for extremely high flow rates. The
ST-860D is unbeatable in case of small and medium flow rates.
Apart from being enormously resistant to high temperatures the sealing copolymer is
suitable for all liquids based on mineral oil as well as for inorganic acids, alkaline solutions,
alcohol and anti-corrosion liquids based on amines and seawater or on their mixtures.
The fact that the hose connection is positioned in the front of the gun positively effects the
professional handling with the gun as well as the heat radiation close to hand and body.

Professional steam gun ST-860D. Brass.
Max. 20 bar / 200 °C
R+M Nr.
200 860 550 1/4" F 1/4" F
ST-860D steam gun with lance

Professional steam gun ST-860D with lance 400 mm stainless steel, vented handle ST-9.1 220 mm and nozzle protector ST-12 without nozzle. Max. 20 bar / 200 °C
R+M Nr.
200 860 555 1/4" F NPT 1/4" F
ST-4000 steam gun with lance

Professional steam gun ST-4000 with lance 500 mm stainless steel with vented handle ST-9 380 mm and steam low pressure nozzle made out of stainless
steel. Max. 20 bar / 200 °C
R+M Nr.
204 000 500 steam low pressure nozzle 3/4" F

Symbols inlet outlet

19
