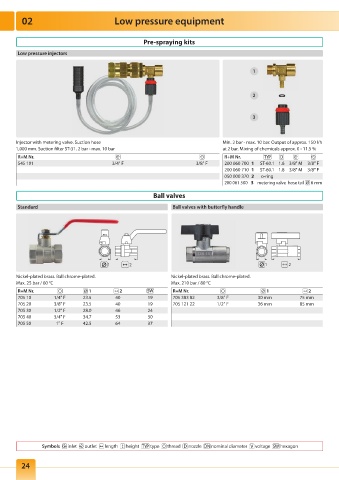

Page 25 - RM_2022

02 Low pressure equipment

Pre-spraying kits
Low pressure injectors

1

2

3

Injector with metering valve. Suction hose Min. 2 bar - max. 10 bar. Output of approx. 150 l/h
1,000 mm. Suction filter ST-31. 2 bar - max. 10 bar at 2 bar. Mixing of chemicals approx. 0 - 11.5 %
R+M Nr. R+M Nr.
545 101 3/4" F 3/8" F 200 060 700 1 ST-60.1 1.6 3/8" M 3/8" F
200 060 710 1 ST-60.1 1.8 3/8" M 3/8" F
050 000 370 2 o-ring
200 061 500 3 metering valve hose tail 6 mm
Ball valves

Standard Ball valves with butterfly handle

1 2 1 2

Nickel-plated brass. Ball chrome-plated. Nickel-plated brass. Ball chrome-plated.
Max. 25 bar / 60 °C Max. 210 bar / 80 °C
R+M Nr. 1 2 R+M Nr. 1 2
705 10 1/4" F 23.5 40 19 705 383 82 3/8" F 30 mm 75 mm
705 20 3/8" F 23.5 40 19 705 121 22 1/2" F 36 mm 85 mm
705 30 1/2" F 28.0 46 24
705 40 3/4" F 34.7 53 30
705 50 1" F 42.5 64 37

Symbols inlet outlet length height type thread nozzle nominal diameter voltage hexagon

24
