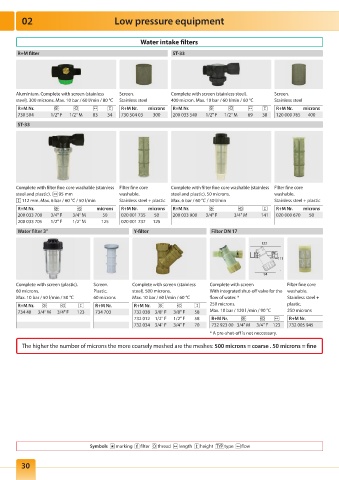

Page 31 - RM_2022

02 Low pressure equipment

Water intake filters
R+M filter ST-33

Aluminium. Complete with screen (stainless Screen. Complete with screen (stainless steel). Screen.
steel). 300 microns. Max. 10 bar / 60 l/min / 80 °C Stainless steel 400 micron. Max. 10 bar / 60 l/min / 60 °C Stainless steel
R+M Nr. R+M Nr. microns R+M Nr. R+M Nr. microns
730 504 1/2" F 1/2" M 83 34 730 504 03 300 200 033 540 1/2" F 1/2" M 69 38 120 000 765 400
ST-33

Complete with filter fine core washable (stainless Filter fine core Complete with filter fine core washable (stainless Filter fine core
steel and plastic). 95 mm washable. steel and plastic). 50 microns. washable.
112 mm. Max. 6 bar / 60 °C / 50 l/min Stainless steel + plastic Max. 6 bar / 60 °C / 50 l/min Stainless steel + plastic
R+M Nr. microns R+M Nr. microns R+M Nr. R+M Nr. microns
200 033 700 3/4" F 3/4" M 50 020 001 735 50 200 033 900 3/4" F 3/4" M 141 020 000 670 50
200 033 705 1/2" F 1/2" M 125 020 001 737 125
Water filter 3” Y-filter Filter DN 17

123

111

94
Complete with screen (plastic). Screen. Complete with screen (stainless Complete with screen Filter fine core
60 microns. Plastic. steel). 500 microns. With integrated shut-off valve for the washable.
Max. 10 bar / 50 l/min / 50 °C 60 microns Max. 10 bar / 60 l/min / 60 °C flow of water. * Stainless steel +
R+M Nr. R+M Nr. R+M Nr. 250 microns. plastic.
734 40 3/4" M 3/4" F 123 734 703 732 038 3/8" F 3/8" F 58 Max. 10 bar / 120 l /min / 90 °C 250 microns
732 012 1/2" F 1/2" F 58 R+M Nr. R+M Nr.
732 034 3/4" F 3/4" F 70 732 923 00 3/4" M 3/4" F 123 732 005 945
* A pre-shut-off is not neccessary.
The higher the number of microns the more coarsely meshed are the meshes: 500 microns = coarse . 50 microns = fine

Symbols marking filter thread length height type flow
