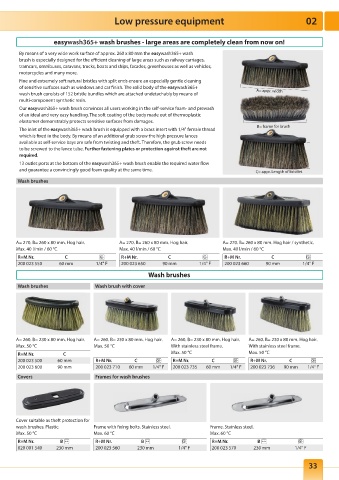

Page 34 - RM_2022

Low pressure equipment 02

easywash365+ wash brushes - large areas are completely clean from now on!
By means of a very wide work surface of approx. 260 x 80 mm the easywash365+ wash
brush is especially designed for the efficient cleaning of large areas such as railway carriages,
tramcars, omnibuses, caravans, trucks, boats and ships, facades, greenhouses as well as vehicles,
motorcycles and many more.
Fine and extremely soft natural bristles with split ends ensure an especially gentle cleaning
of sensitive surfaces such as windows and car finish. The solid body of the easywash365+
A= appr. width
wash brush consists of 152 bristle bundles which are attached undetachably by means of
multi-component synthetic resin.
Our easywash365+ wash brush convinces all users working in the self-service foam- and prewash
of an ideal and very easy handling. The soft coating of the body made out of thermoplastic
elastomer demonstrably protects sensitive surfaces from damages.
B= frame for brush
The inlet of the easywash365+ wash brush is equipped with a brass insert with 1/4" female thread
which is fixed in the body. By means of an additional grub screw the high pressure lances
available at self-service bays are safe from twisting and theft. Therefore, the grub screw needs
to be screwed to the lance tube. Further fastening plates or protection against theft are not
required.
13 outlet ports at the bottom of the easywash365+ wash brush enable the required water flow
and guarantee a convincingly good foam quality at the same time.
C= appr. Length of bristles
Wash brushes

A= 270. B= 260 x 80 mm. Hog hair. A= 270. B= 260 x 80 mm. Hog hair. A= 270. B= 260 x 80 mm. Hog hair / synthetic.
Max. 40 l/min / 60 °C Max. 40 l/min / 60 °C Max. 40 l/min / 60 °C
R+M Nr. C R+M Nr. C R+M Nr. C
200 023 550 60 mm 1/4" F 200 023 650 90 mm 1/4" F 200 023 660 90 mm 1/4" F

Wash brushes
Wash brushes Wash brush with cover

A= 260. B= 230 x 80 mm. Hog hair. A= 260. B= 230 x 80 mm. Hog hair. A= 260. B= 230 x 80 mm. Hog hair. A= 260. B= 230 x 80 mm. Hog hair.
Max. 50 °C Max. 50 °C With stainless steel frame. With stainless steel frame.
R+M Nr. C Max. 50 °C Max. 50 °C
200 023 500 60 mm R+M Nr. C R+M Nr. C R+M Nr. C
200 023 600 90 mm 200 023 710 60 mm 1/4" F 200 023 735 60 mm 1/4" F 200 023 736 90 mm 1/4" F
Covers Frames for wash brushes

Cover suitable as theft protection for
wash brushes. Plastic. Frame with fixing bolts. Stainless steel. Frame. Stainless steel.
Max. 50 °C Max. 60 °C Max. 60 °C
R+M Nr. B R+M Nr. B R+M Nr. B
020 001 540 230 mm 200 023 560 230 mm 1/4" F 200 023 570 230 mm 1/4" F

33
