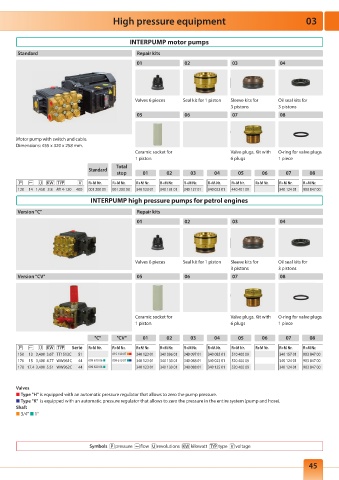

Page 46 - RM_2022

High pressure equipment 03

INTERPUMP motor pumps
Standard Repair kits
01 02 03 04

Valves 6 pieces Seal kit for 1 piston Sleeve kits for Oil seal kits for
3 pistons 3 pistons
05 06 07 08

Motor pump with switch and cable.
Dimensions: 455 x 320 x 258 mm.
Ceramic socket for Valve plugs. Kit with O-ring for valve plugs
1 piston 6 plugs 1 piece
Total
Standard
stop 01 02 03 04 05 06 07 08
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
120 14 1,450 3.8 M14-120 400 001 200 01 001 200 03 340 123 01 340 131 01 340 127 01 340 023 01 440 401 09 340 124 01 903 847 00
INTERPUMP high pressure pumps for petrol engines

Version "C" Repair kits
01 02 03 04

Valves 6 pieces Seal kit for 1 piston Sleeve kits for Oil seal kits for
3 pistons 3 pistons
Version "CV" 05 06 07 08

Ceramic socket for Valve plugs. Kit with O-ring for valve plugs
1 piston 6 plugs 1 piece

"C" "CV" 01 02 03 04 05 06 07 08
Serie R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
150 13 3,400 3.67 TT1513C 51 015 130 07 ■■ 340 123 01 340 096 01 340 097 01 340 083 01 510 400 09 340 157 01 903 847 00
170 15 3,400 4.77 WW961C 44 009 610 06 ■ 009 610 07 ■■ 340 123 01 340 130 01 340 088 01 340 023 01 520 400 09 340 124 01 903 847 00
170 17.4 3,400 5.51 WW962C 44 009 620 06 ■ 340 123 01 340 130 01 340 088 01 340 125 01 520 400 09 340 124 01 903 847 00

Valves
■ Type "H" is equipped with an automatic pressure regulator that allows to zero the pump pressure.
■ Type "K" is equipped with an automatic pressure regulator that allows to zero the pressure in the entire system (pump and hose).
Shaft
■ 3/4" ■ 1"

Symbols pressure flow revolutions kilowatt type voltage

45
