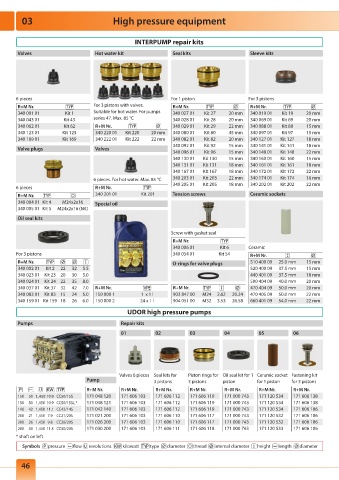

Page 47 - RM_2022

03 High pressure equipment

INTERPUMP repair kits
Valves Hot water kit Seal kits Sleeve kits

6 pieces For 1 piston For 3 pistons
R+M Nr. For 3 pistons with valves. R+M Nr. R+M Nr.
340 001 01 Kit 1 Suitable for hot water. For pumps 340 027 01 Kit 27 20 mm 340 019 01 Kit 19 20 mm
340 043 01 Kit 43 series 47. Max. 85 °C 340 028 01 Kit 28 20 mm 340 069 01 Kit 69 20 mm
340 062 01 Kit 62 R+M Nr. 340 029 01 Kit 29 22 mm 340 088 01 Kit 88 15 mm
340 123 01 Kit 123 340 220 01 Kit 220 20 mm 340 080 01 Kit 80 45 mm 340 097 01 Kit 97 15 mm
340 169 01 Kit 169 340 222 01 Kit 222 22 mm 340 082 01 Kit 82 20 mm 340 127 01 Kit 127 18 mm
340 092 01 Kit 92 15 mm 340 141 01 Kit 141 18 mm
Valve plugs Valves
340 096 01 Kit 96 15 mm 340 148 01 Kit 148 22 mm
340 130 01 Kit 130 15 mm 340 160 01 Kit 160 15 mm
340 131 01 Kit 131 18 mm 340 161 01 Kit 161 18 mm
340 167 01 Kit 167 18 mm 340 172 01 Kit 172 22 mm
6 pieces. For hot water. Max. 85 °C 340 203 01 Kit 203 22 mm 340 174 01 Kit 174 16 mm
340 205 01 Kit 205 18 mm 340 202 01 Kit 202 22 mm
6 pieces R+M Nr.
R+M Nr. 340 201 01 Kit 201 Tension screws Ceramic sockets
340 004 01 Kit 4 M24x2x16 Special oil
340 005 01 Kit 5 M24x2x16 (NK)
Oil seal kits

Screw with gasket seal
R+M Nr.
340 006 01 Kit 6 Ceramic
For 3 pistons 340 054 01 Kit 54 R+M Nr.
R+M Nr. O-rings for valve plugs 510 400 09 25.0 mm 15 mm
340 002 01 Kit 2 22 32 5.5 520 400 09 37.5 mm 15 mm
340 023 01 Kit 23 20 30 5.0 440 401 09 37.5 mm 18 mm
340 024 01 Kit 24 22 35 8.0 500 404 09 40.0 mm 20 mm
340 037 01 Kit 37 32 42 7.0 R+M Nr. R+M Nr. 470 404 09 50.0 mm 20 mm
340 083 01 Kit 83 15 24 5.0 150 000 1 1 x 1 l 903 847 00 M24 2.62 20.24 470 405 09 50.0 mm 22 mm
340 159 01 Kit 159 18 26 6.0 150 000 2 24 x 1 l 904 051 00 M32 3.53 26.58 660 401 09 54.0 mm 22 mm
UDOR high pressure pumps
Pumps Repair kits

01 02 03 04 05 06

Valves 6 pieces Seal kits for Piston rings for Oil seal kit for 1 Ceramic socket Fastening kit
Pump 3 pistons 3 pistons piston for 1 piston for 3 pistons
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
150 50 1.,450 10.9 CC50/15S 171 048 120 171 606 103 171 606 112 171 606 119 171 000 743 171 120 534 171 606 138
150 50 1,450 10.9 CC50/15SL * 171 048 121 171 606 103 171 606 112 171 606 119 171 000 743 171 120 534 171 606 138
140 42 1,450 11.1 CC42/14S 171 042 140 171 606 103 171 606 112 171 606 119 171 000 743 171 120 534 171 606 106
200 21 1,450 7.9 CC21/20S 171 021 200 171 606 103 171 606 110 171 606 117 171 000 743 171 120 532 171 606 106
200 26 1,450 9.8 CC26/20S 171 026 200 171 606 103 171 606 110 171 606 117 171 000 743 171 120 532 171 606 106
200 30 1,450 11.3 CC30/20S 171 030 200 171 606 103 171 606 111 171 606 118 171 000 743 171 120 533 171 606 106
* shaft on left
Symbols pressure flow revolutions kilowatt type diameter thread internal diameter height length diameter
