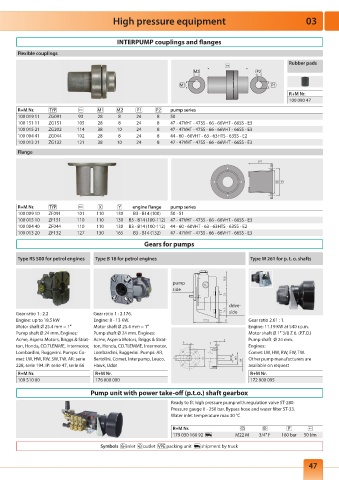

Page 48 - RM_2022

High pressure equipment 03

INTERPUMP couplings and flanges
Flexible couplings
Rubber pads

R+M Nr.
100 090 47
R+M Nr. pump series
100 019 11 ZG091 93 28 8 24 8 50
100 151 11 ZG151 105 28 8 24 8 47 - 47VHT - 47SS - 66 - 66VHT - 66SS - E3
100 015 21 ZG202 114 38 10 24 8 47 - 47VHT - 47SS - 66 - 66VHT - 66SS - E3
100 004 41 ZG044 102 28 8 24 8 44 - 60 - 60VHT - 63 - 63HTS - 63SS - E2
100 013 21 ZG132 121 38 10 24 8 47 - 47VHT - 47SS - 66 - 66VHT - 66SS - E3
Flange

R+M Nr. engine flange pump series
100 009 10 ZF091 101 110 130 B3 - B14 (100) 50 - 51
100 015 10 ZF151 110 110 130 B3 - B14 (100-112) 47 - 47VHT - 47SS - 66 - 66VHT - 66SS - E3
100 004 40 ZF044 110 110 130 B3 - B14 (100-112) 44 - 60 - 60VHT - 63 - 63HTS - 63SS - E2
100 013 20 ZF132 127 130 165 B3 - B14 (132) 47 - 47VHT - 47SS - 66 - 66VHT - 66SS - E3
Gears for pumps

Type RS 500 for petrol engines Type B 18 for petrol engines Type M 261 for p. t. o. shafts

pump
side

drive-
Gear ratio 1 : 2.2 Gear ratio 1 : 2.176. side
Engine: up to 18.5 kW Engine: 8 - 13 KW. Gear ratio 2.61 : 1.
Motor shaft Ø 25.4 mm = 1" Motor shaft Ø 25.4 mm = 1" Engine: 11.19 KW at 540 r.p.m.
Pump shaft Ø 24 mm. Engines: Pump shaft Ø 24 mm. Engines: Motor shaft Ø 1" 3/8 Z 6. (P.T.O.)
Acme, Aspera Motors, Briggs & Strat- Acme, Aspera Motors, Briggs & Strat- Pump shaft Ø 24 mm.
ton, Honda, CO.TI.EMME, Intermotor, ton, Honda, CO.TI.EMME, Intermotor, Engines:
Lombardini, Ruggerini. Pumps: Co- Lombardini, Ruggerini. Pumps: AR, Comet: LW, HW, RW, FW, TW.
met: LW, HW, RW, SW, TW. AR: serie Bertolini, Comet, Interpump, Leuco, Other pump manufacturers are
228, serie 194. IP: serie 47, serie 66 Hawk, Udor available on request
R+M Nr. R+M Nr. R+M Nr.
109 510 00 176 000 000 172 900 095

Pump unit with power take-off (p.t.o.) shaft gearbox
Ready to fit high pressure pump with regulation valve ST-280.
Pressure gauge 0 - 250 bar. Bypass hose and water filter ST-33.
Water inlet temperature max 30 °C

R+M Nr.
179 030 166 92 M22 M 3/4" F 160 bar 30 l/m
Symbols inlet outlet packing unit shipment by truck

47
