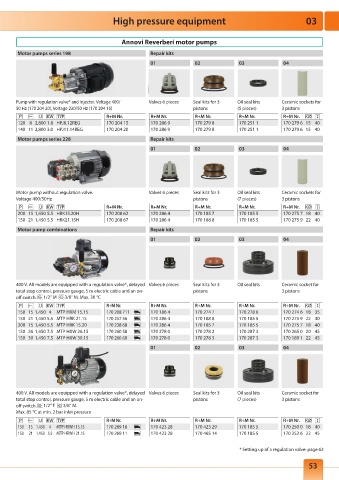

Page 54 - RM_2022

High pressure equipment 03

Annovi Reverberi motor pumps
Motor pumps series 198 Repair kits
01 02 03 04

Pump with regulation valve* and injector. Voltage 400/ Valves 6 pieces Seal kits for 3 Oil seal kits Ceramic sockets for
50 Hz (170 204 20), Voltage 230/50 Hz (170 204 15) pistons (5 pieces) 3 pistons
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
120 8 2,800 1.8 HPJ8.12REG 170 204 15 170 286 9 170 279 8 170 251 1 170 279 6 15 40
140 11 2,800 3.0 HPJ11.14REG 170 204 20 170 286 9 170 279 8 170 251 1 170 279 6 15 40
Motor pumps series 228 Repair kits
01 02 03 04

Motor pump without regulation valve. Valves 6 pieces Seal kits for 3 Oil seal kits Ceramic sockets for
Voltage 400/50Hz pistons (7 pieces) 3 pistons
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
200 15 1,450 5.5 HRK15.20H 170 208 62 170 286 4 170 185 7 170 185 5 170 275 7 18 40
150 21 1,450 5.5 HRK21.15H 170 208 67 170 286 4 170 188 8 170 185 5 170 275 9 22 40
Motor pump combinations Repair kits
01 02 03 04

400 V. All models are equipped with a regulation valve*, delayed Valves 6 pieces Seal kits for 3 Oil seal kits Ceramic socket for
total stop control, pressure gauge, 5 m electric cable and an on- pistons 3 pistons
off switch. 1/2" M 3/8" M. Max. 30 °C
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
150 15 1,450 4 MTP HXM 15.15 170 208 711 170 186 4 170 274 7 170 278 6 170 274 6 18 35
150 21 1,450 5.5 MTP HRK 21.15 170 257 56 170 286 4 170 188 8 170 185 5 170 275 9 22 40
200 15 1,450 5.5 MTP HRK 15.20 170 238 68 170 286 4 170 185 7 170 185 5 170 275 7 18 40
150 26 1,450 7.5 MTP HXW 26.15 170 260 58 170 278 0 170 278 2 170 287 3 170 265 0 20 45
150 30 1,450 7.5 MTP HXW 30.15 170 260 60 170 278 0 170 278 3 170 287 3 170 189 1 22 45
01 02 03 04

400 V. All models are equipped with a regulation valve*, delayed Valves 6 pieces Seal kits for 3 Oil seal kits Ceramic socket for
total stop control, pressure gauge, 5 m electric cable and an on- pistons (7 pieces) 3 pistons
off switch. 1/2" F 3/8" M.
Max. 85 °C at min. 2 bar inlet pressure
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
150 15 1.450 4 MTP HRWH 15.15 170 269 18 170 423 28 170 423 29 170 185 5 170 250 0 18 40
150 21 1.450 5,5 MTP HRWH 21.15 170 269 11 170 423 28 170 465 14 170 185 5 170 252 6 22 45

* Setting up of a regulation valve: page 62
