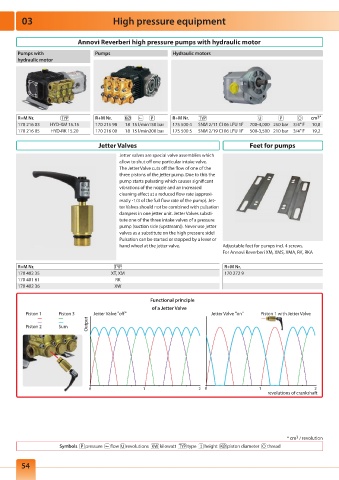

Page 55 - RM_2022

03 High pressure equipment

Annovi Reverberi high pressure pumps with hydraulic motor
Pumps with Pumps Hydraulic motors
hydraulic motor

R+M Nr. R+M Nr. R+M Nr. cm 3*
170 216 03 HYD-XM 15.15 170 215 98 18 15 l/min150 bar 175 500 4 SNM 2/11 CI 06 LFU 1F 700-4,000 250 bar 3/4" F 10,8
170 216 05 HYD-RK 15.20 170 216 00 18 15 l/min200 bar 175 500 5 SNM 2/19 CI 06 LFU 1F 500-3,500 210 bar 3/4" F 19,2

Jetter Valves Feet for pumps

Jetter valves are special valve assemblies which
allow to shut off one particular intake valve.
The Jetter Valve cuts off the flow of one of the
three pistons of the jetter pump. Due to this the
pump starts pulsating which causes significant
vibrations of the nozzle and an increased
cleaning effect at a reduced flow rate (approxi-
matly -1/3 of the full flow rate of the pump). Jet-
ter Valves should not be combined with pulsation
dampers in one jetter unit. Jetter Valves substi-
tute one of the three intake valves of a pressure
pump (suction side (upstream)). Never use jetter
valves as a substitute on the high pressure side!
Pulsation can be started or stopped by a lever or
hand wheel at the jetter valve. Adjustable feet for pumps incl. 4 screws.
For Annovi Reverberi XM, XMS, XMA, RK, RKA

R+M Nr. R+M N r .
R+M Nr.
170 272 9
170 402 35 XT, XM 170 272 9
170 401 61 RK
170 402 36 XW
Functional principle
of a Jetter Valve
Piston 1 Piston 3 Jetter Valve "off" Jetter Valve "on" Piston 1 with Jetter Valve
Output
Piston 2 Sum

0 1 2 0 1 2
revolutions of crankshaft

3
* cm / revolution
Symbols pressure flow revolutions kilowatt type height piston diameter thread
