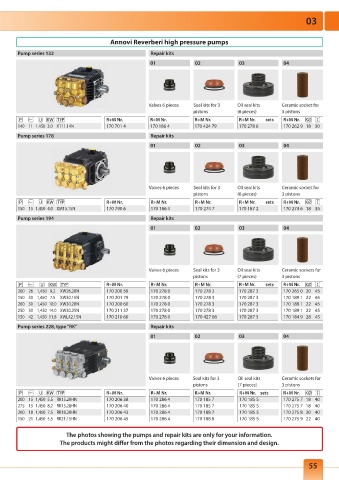

Annovi Reverberi high pressure pumps
Pump series 132 Repair kits
01 02 03 04

Valves 6 pieces Seal kits for 3 Oil seal kits Ceramic socket for
pistons (6 pieces) 3 pistons
R+M Nr. R+M Nr. R+M Nr. R+M Nr. sets R+M Nr.
140 11 1,450 3.0 XT11.14N 170 701 4 170 186 4 170 424 79 170 278 6 170 262 9 18 30
Pump series 178 Repair kits

01 02 03 04

Valves 6 pieces Seal kits for 3 Oil seal kits Ceramic socket for
pistons (6 pieces) 3 pistons
R+M Nr. R+M Nr. R+M Nr. R+M Nr. sets R+M Nr.
150 15 1,450 4.0 XM15.15N 170 790 6 170 186 4 170 274 7 170 187 2 170 274 6 18 35
Pump series 194 Repair kits

01 02 03 04

Valves 6 pieces Seal kits for 3 Oil seal kits Ceramic sockets for
pistons (7 pieces) 3 pistons
R+M Nr. R+M Nr. R+M Nr. R+M Nr. sets R+M Nr.
200 26 1,450 9.2 XW26.20N 170 200 59 170 278 0 170 278 2 170 287 3 170 265 0 20 45
150 30 1,450 7.5 XW30.15N 170 201 79 170 278 0 170 278 3 170 287 3 170 189 1 22 45
200 30 1,450 10.0 XW30.20N 170 200 60 170 278 0 170 278 3 170 287 3 170 189 1 22 45
250 30 1,450 14.0 XW30.25N 170 211 37 170 278 0 170 278 3 170 287 3 170 189 1 22 45
150 42 1,450 11.8 XWL42.15N 170 210 60 170 278 0 170 427 08 170 287 3 170 184 9 28 45
Pump series 228, type "RK" Repair kits
01 02 03 04

Valves 6 pieces Seal kits for 3 Oil seal kits Ceramic sockets for
pistons (7 pieces) 3 pistons
R+M Nr. R+M Nr. R+M Nr. R+M Nr. sets R+M Nr.
200 15 1,450 5.5 RK15.20HN 170 206 38 170 286 4 170 185 7 170 185 5 170 275 7 18 40
275 15 1,450 8.2 RK15.28HN 170 206 40 170 286 4 170 185 7 170 185 5 170 275 7 18 40
200 18 1,450 7.5 RK18.20HN 170 206 43 170 286 4 170 188 7 170 185 5 170 275 8 20 40
150 21 1,450 5.5 RK21.15HN 170 206 45 170 286 4 170 188 8 170 185 5 170 275 9 22 40

The photos showing the pumps and repair kits are only for your information.
The products might differ from the photos regarding their dimension and design.
