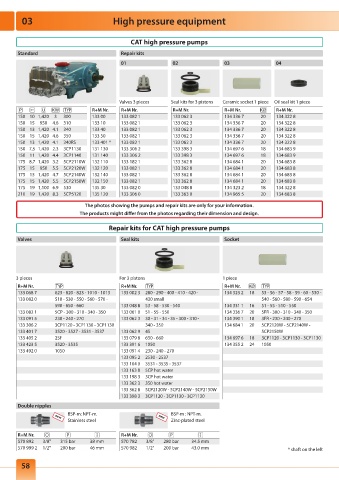

Page 59 - RM_2022

03 High pressure equipment

CAT high pressure pumps
Standard Repair kits
01 02 03 04

Valves 3 pieces Seal kits for 3 pistons Ceramic socket 1 piece Oil seal kit 1 piece
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
150 10 1,420 3 300 133 00 133 082 1 133 062 3 134 336 7 20 134 322 8
150 15 950 4.6 310 133 10 133 082 1 133 062 3 134 336 7 20 134 322 8
150 13 1,420 4.1 340 133 40 133 082 1 133 062 3 134 336 7 20 134 322 8
150 15 1,420 4.6 350 133 50 133 082 1 133 062 3 134 336 7 20 134 322 8
150 13 1,420 4.1 340RS 133 401 * 133 082 1 133 062 3 134 336 7 20 134 322 8
150 7,5 1,420 2.3 3CP1130 131 130 133 306 2 133 398 3 134 697 6 18 134 683 9
150 11 1,420 4.4 3CP1140 131 140 133 306 2 133 398 3 134 697 6 18 134 683 9
175 8,7 1,420 3.2 5CP2110W 132 110 133 182 1 133 362 8 134 684 1 20 134 683 8
175 15 950 5.5 5CP2120W 132 120 133 082 1 133 362 8 134 684 1 20 134 683 8
175 13 1,420 4.7 5CP2140W 132 140 133 082 1 133 362 8 134 684 1 20 134 683 8
175 15 1,420 5.5 5CP2150W 132 150 133 082 1 133 362 8 134 684 1 20 134 683 8
175 19 1,100 6.9 530 135 30 133 082 0 133 048 8 134 323 2 18 134 322 8
210 19 1,420 8.3 5CP5120 135 120 133 306 0 133 363 0 134 965 5 20 134 683 8

The photos showing the pumps and repair kits are only for your information.
The products might differ from the photos regarding their dimension and design.

Repair kits for CAT high pressure pumps

Valves Seal kits Socket

3 pieces For 3 pistons 1 piece
R+M Nr. R+M Nr. R+M Nr.
133 068 7 623 - 820 - 823 - 1010 - 1013 133 002 3 280 - 290 - 400 - 410 - 420 - 134 323 2 18 53 - 56 - 57 - 58 - 59 - 60 - 530 -
133 082 0 510 - 530 - 550 - 560 - 570 - 430 small 540 - 560 - 580 - 590 - 654
590 - 650 - 660 133 048 8 53 - 58 - 530 - 540 134 331 1 16 51 - 55 - 510 - 550
133 082 1 5CP - 300 - 310 - 340 - 350 133 061 0 51 - 55 - 550 134 336 7 20 5FR - 300 - 310 - 340 - 350
133 091 5 230 - 240 - 270 133 062 3 30 - 31 - 34 - 35 - 300 - 310 - 134 390 1 18 3FR - 230 - 240 - 270
133 306 2 3CP1120 - 3CP1130 - 3CP1130 340 - 350 134 684 1 20 5CP2120W - 5CP2140W -
133 401 7 3520 - 3527 - 3531 - 3537 133 062 9 45 5CP2150W
133 405 2 2SF 133 079 8 650 - 660 134 697 6 18 3CP1120 - 3CP1130 - 3CP1130
133 423 5 3520 - 3535 133 391 6 1050 134 355 2 24 1050
133 492 0 1050 133 091 4 230 - 240 - 270
133 095 2 2530 - 2537
133 104 0 3531 - 3535 - 3537
133 163 8 5CP hot water
133 198 3 3CP hot water
133 362 3 350 hot water
133 362 8 5CP2120W - 5CP2140W - 5CP2150W
133 398 3 3CP1120 - 3CP1130 - 3CP1130
Double nipples
BSP-m: NPT-m. new BSP-m : NPT-m.
new
Stainless steel Zinc-plated steel

R+M Nr. R+M Nr.
570 892 3/8" 315 bar 38 mm 570 782 3/8" 280 bar 34.5 mm
570 999 2 1/2" 200 bar 46 mm 570 982 1/2" 200 bar 43.0 mm * shaft on the left
