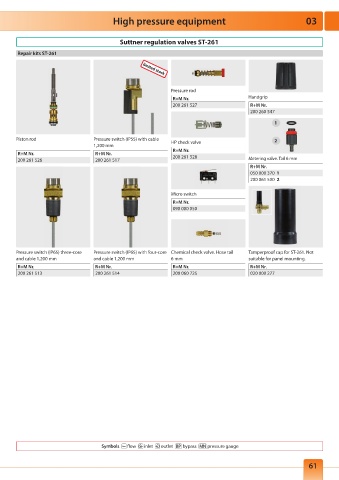

High pressure equipment 03

Suttner regulation valves ST-261
Repair kits ST-261 limited stock

Pressure rod
R+M Nr. Handgrip
200 261 527 R+M Nr.
200 260 547
1

Piston rod Pressure switch (IP55) with cable 2
HP check valve
1,200 mm
R+M Nr.
R+M Nr. R+M Nr.
200 261 528
200 261 526 200 261 517 Metering valve. Tail 6 mm
R+M Nr.
050 000 370 1
200 061 500 2

Micro switch
R+M Nr.
090 000 050

Pressure switch (IP65) three-core Pressure switch (IP65) with four-core Chemical check valve. Hose tail Tamperproof cap for ST-261. Not
and cable 1,200 mm and cable 1,200 mm 6 mm suitable for panel mounting.
R+M Nr. R+M Nr. R+M Nr. R+M Nr.
200 261 513 200 261 514 200 060 725 020 000 277

Symbols flow inlet outlet bypass pressure gauge
