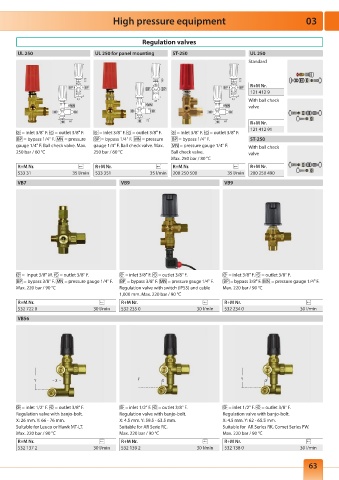

Page 64 - RM_2022

High pressure equipment 03

Regulation valves
UL 250 UL 250 for panel mounting ST-250 UL 250
Standard

175 190 175
R+M Nr.
121 412 9
43 43
43 With ball check
valve

81 72 81
R+M Nr.
121 412 91
= inlet 3/8" F. = outlet 3/8" F. = inlet 3/8" F. = outlet 3/8" F. = inlet 3/8" F. = outlet 3/8" F.
= bypass 1/4" F. = pressure = bypass 1/4" F. = pressure = bypass 1/4" F. ST-250
gauge 1/4" F. Ball check valve. Max. gauge 1/4" F. Ball check valve. Max. = pressure gauge 1/4" F. With ball check
250 bar / 60 °C 250 bar / 60 °C Ball check valve. valve
Max. 250 bar / 80 °C
R+M Nr. R+M Nr. R+M Nr. R+M Nr.
533 31 35 l/min 533 351 35 l/min 200 250 500 35 l/min 200 250 490
VB7 VB9 VB9

= input 3/8" M. = outlet 3/8" F. = inlet 3/8" F. = outlet 3/8" F. = inlet 3/8" F. = outlet 3/8" F.
= bypass 3/8" F. = pressure gauge 1/4" F. = bypass 3/8" F. = pressure gauge 1/4" F. = bypass 3/8" F. = pressure gauge 1/4" F.
Max. 220 bar / 90 °C Regulation valve with switch (IP55) and cable Max. 220 bar / 90 °C
1,000 mm. Max. 220 bar / 90 °C
R+M Nr. R+M Nr. R+M Nr.
532 722 0 30 l/min 532 235 0 30 l/min 532 234 0 30 l/min
VB56

Y X Y X Y X

= inlet 1/2" F. = outlet 3/8" F. = inlet 1/2" F. = outlet 3/8" F. = inlet 1/2" F. = outlet 3/8" F.
Regulation valve with banjo-bolt. Regulation valve with banjo-bolt. Regulation valve with banjo-bolt.
X: 26 mm. Y: 66 - 76 mm. X: 4.5 mm. Y: 59.5 - 63.5 mm. X: 4.5 mm. Y: 62 - 65.5 mm.
Suitable for Leuco or Hawk MT-LT. Suitable for AR Serie RC. Suitable for AR Series RK, Comet Series FW.
Max. 220 bar / 90 °C Max. 220 bar / 90 °C Max. 220 bar / 90 °C
R+M Nr. R+M Nr. R+M Nr.
532 137 2 30 l/min 532 139 2 30 l/min 532 138 0 30 l/min

63
