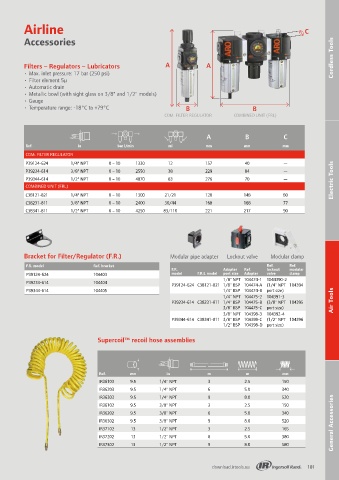

Airline C

Accessories

Filters – Regulators – Lubricators A A Cordless Tools Cordless Tools
• Max. inlet pressure: 17 bar (250 psi)
• Filter element 5µ
• Automatic drain
• Metallic bowl (with sight glass on 3/8" and 1/2" models)
• Gauge
• Temperature range: -18°C to +79°C B B
COM. FILTER REGULATOR COMBINED UNIT (FRL)

A B C

Ref. in bar l/min ml mm mm mm
COM. FILTER REGULATOR
P39124-624 1/4" NPT 0 – 10 1330 12 157 40 —
P39234-614 3/8" NPT 0 – 10 2550 38 229 84 —
P39344-614 1/2" NPT 0 – 10 4870 83 276 70 — Electric Tools Electric Tools
COMBINED UNIT (FRL)
C38121-821 1/4" NPT 0 – 10 1300 21/21 120 148 80
C38231-811 3/8" NPT 0 – 10 2400 30/44 168 168 77
C38341-811 1/2" NPT 0 – 10 4250 83/110 221 217 90

Bracket for Filter/Regulator (F.R.) Modular pipe adapter Lockout valve Modular clamp

F.R. model Ref. bracket Ref. Ref.
F.R. Adapter Ref. lockout modular
P39124-624 104403 model F.R.L model port size Adapter valve clamp
1/8" NPT 104474-1 1044390-2
P39234-614 104404
P39124-624 C38121-821 1/8" BSP 104474-A (1/4" NPT 104394
P39344-614 104405 1/4" BSP 104474-B port size)
1/4" NPT 104475-2 104391-3
P39234-614 C38231-811 1/4" BSP 104475-B (3/8" NPT 104395 Air Tools
3/8" BSP 104475-C port size)
3/8" NPT 104398-3 104392-4
P39344-614 C38341-811 3/8" BSP 104398-C (1/2" NPT 104396
1/2" BSP 104398-D port size)

Supercoil™ recoil hose assemblies

Ref. mm in m m mm
IR36103 9.5 1/4" NPT 3 2.5 150
IR36203 9.5 1/4" NPT 6 5.0 340
IR36303 9.5 1/4" NPT 9 8.0 520
IR36102 9.5 3/8" NPT 3 2.5 150
IR36202 9.5 3/8" NPT 6 5.0 340
IR36302 9.5 3/8" NPT 9 8.0 520 General Accessories General Accessories
IR37102 13 1/2" NPT 3 2.5 165
IR37202 13 1/2" NPT 6 5.0 380
IR37302 13 1/2" NPT 9 8.0 580

download.irtools.eu 101
