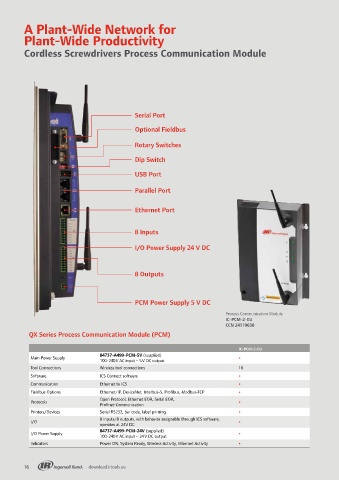

A Plant-Wide Network for
Plant-Wide Productivity
Cordless Screwdrivers Process Communication Module
Serial Port
Optional Fieldbus
Rotary Switches
Dip Switch
USB Port
Parallel Port
Ethernet Port
8 Inputs
I/O Power Supply 24 V DC
8 Outputs
PCM Power Supply 5 V DC
Process Communication Module
IC-PCM-2-EU
CCN 24119638
QX Series Process Communication Module (PCM)
IC-PCM-2-EU
84737-A499-PCM-5V (supplied)
Main Power Supply •
100-240 V AC input – 5 V DC output
Tool Connections Wireless tool connections 10
Software ICS Connect software •
Communication Ethernet to ICS •
Fieldbus Options Ethernet/IP, DeviceNet, Interbus-S, Profibus, Modbus-TCP •
Open Protocol, Ethernet EOR, Serial EOR,
Protocols •
Profinet-Communication
Printers/Devices Serial RS232, bar code, label printing •
8 inputs/8 outputs, with behavior assignable through ICS software,
I/O •
operates at 24V DC
84737-A499-PCM-24V (supplied)
I/O Power Supply •
100-240 V AC input – 24 V DC output
Indicators Power ON, System Ready, Wireless Activity, Ethernet Activity •
