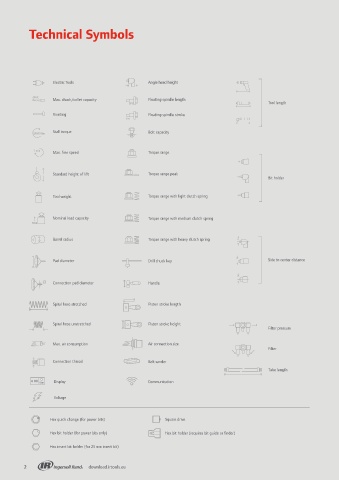

Technical Symbols
Electric Tools Angle head height
Max. chuck/collet capacity Floating spindle length
Tool length
Riveting Floating spindle stroke
Stall torque Bolt capacity
Max. free speed Torque range
Standard height of lift Torque range peak
Bit holder
Tool weight Torque range with light clutch spring
Nominal load capacity Torque range with medium clutch spring
Barrel radius Torque range with heavy clutch spring
Pad diameter Drill chuck key Side to center distance
Connection pad diameter Handle
Spiral hose stretched Piston stroke length
Spiral hose unstretched Piston stroke height
Filter pressure
Max. air consumption Air connection size
Filter
Connection thread Belt sander
Tube length
Display Communication
Voltage
Hex quick change (for power bits) Square drive
Hex bit holder (for power bits only) Hex bit holder (requires bit guide or finder)
Hex insert bit holder (for 25 mm insert bit)
