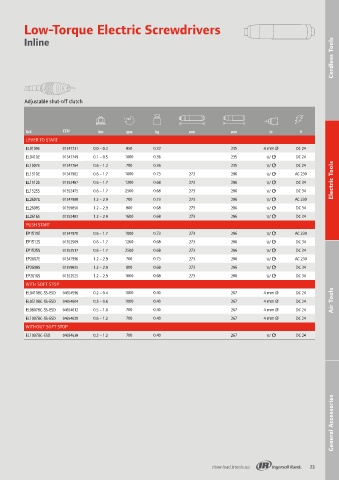

Page 23 - Assembly_Solutions

Low-Torque Electric Screwdrivers

Inline
Cordless Tools Cordless Tools

Adjustable shut-off clutch

Ref. CCN Nm rpm kg mm mm in V
LEVER TO START
EL0109E 01347731 0.0 – 0.2 950 0.32 235 4 mm Ø DC 24
EL0410E 01347749 0.1 – 0.5 1000 0.36 235 1/4" DC 24
EL1007E 01347764 0.6 – 1.2 700 0.36 235 1/4" DC 24
EL1510E 01347962 0.6 – 1.7 1000 0.73 273 286 1/4" AC 230
EL1512S 01352467 0.6 – 1.7 1200 0.68 273 286 1/4" DC 34 Electric Tools
EL1525S 01352475 0.6 – 1.7 2500 0.68 273 286 1/4" DC 34
EL2607E 01347988 1.2 – 2.9 700 0.73 273 286 1/4" AC 230
EL2608S 01359850 1.2 – 2.9 800 0.68 273 286 1/4" DC 34
EL2616S 01352483 1.2 – 2.9 1600 0.68 273 286 1/4" DC 34
PUSH START
EP1510E 01347970 0.6 – 1.7 1000 0.73 273 286 1/4" AC 230
EP1512S 01352509 0.6 – 1.7 1200 0.68 273 286 1/4" DC 34
EP1525S 01352517 0.6 – 1.7 2500 0.68 273 286 1/4" DC 34
EP2607E 01347996 1.2 – 2.9 700 0.73 273 286 1/4" AC 230
EP2608S 01359835 1.2 – 2.9 800 0.68 273 286 1/4" DC 34
EP2616S 01352525 1.2 – 2.9 1600 0.68 273 286 1/4" DC 34
WITH SOFT STOP
EL0410BC-SS-ESD 04654596 0.2 – 0.4 1000 0.40 267 4 mm Ø DC 24
EL0510BC-SS-ESD 04654604 0.3 – 0.6 1000 0.40 267 4 mm Ø DC 24 Air Tools Air Tools
EL0807BC-SS-ESD 04654612 0.5 – 1.0 700 0.40 267 4 mm Ø DC 24
EL1007BC-SS-ESD 04654620 0.6 – 1.2 700 0.40 267 4 mm Ø DC 24
WITHOUT SOFT STOP
EL1007BC-ESD 04654638 0.2 – 1.2 700 0.40 267 1/4" DC 24
