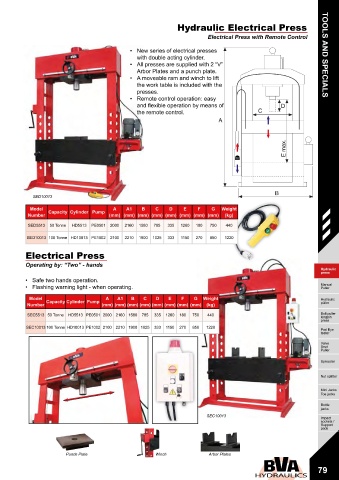

Hydraulic Electrical Press
Hydraulic Manual Press Electrical Press with Remote Control

With easy system for the lifting of the work table
• New series of electrical presses
• The contra weight allows an effortless and fast positioning of with double acting cylinder. TOOLS AND SPECIALS
the work table ( ). • All presses are supplied with 2 “V”
• Designed and developed to relieve the operator from A 1 Arbor Plates and a punch plate.
physical stress during lifting of the work table. D • A moveable ram and winch to lift
• Supplied with double speed pump, with 200mm long stroke A C the work table is included with the
hydraulic cylinder. E max. presses.
• Pump can be operated by hand, or by use of the foot pump lever. • Remote control operation: easy
• The pistons are made of chromium plated steel. and flexible operation by means of
• Moveable ram the remote control.

Model Capacity A B C D E W L Weight
Number (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
SMS3108 30 Tonne 2050 1100 710 200 1150 150 650 300 B
SMS5108 50 Tonne 2130 1200 810 200 1150 180 750 400
SMS10108 100 Tonne 2300 1530 1020 200 1000 265 850 950

Punch Plate Arbor Plates

F
SED10013

Model A A1 B C D E F G Weight
Moveable Cylinder Number Capacity Cylinder Pump (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)

SED5513 50 Tonne HD5513 PE0501 2000 2160 1580 785 335 1260 180 750 440

SED10013 100 Tonne HD10013 PE1002 2100 2210 1900 1025 333 1150 270 850 1220
G
Electrical Press
Optional Items
Operating by: “Two” - hands
Hydraulic
press
Open • Safe two hands operation.
Safety Guard Manual
SAG51 • Flashing warning light - when operating. Puller
Model A A1 B C D E F G Weight Hydraulic
Number Capacity Cylinder Pump (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg) puller
SEC5513 50 Tonne HD5513 PE0501 2000 2160 1580 785 335 1260 180 750 440 Bolt puller
kingpin
press
SEC10013 100 Tonne HD10013 PE1002 2100 2210 1900 1025 333 1150 270 850 1220
Pad Eye
tester
Valve
Seat
Puller
Spreader
Closed
Safety Guard Nut splitter
SAG51
Mini Jacks
Toe jacks
Punch Set Bottle
SAP31/SAP51 jacks
SEC10013 Impact
sockets /
Support
Safety Practices pads
Good industry practice
recommends not exceeding
80% of maximum rated Adapter 35 30 25 20 15
capacities of all our products. mm mm mm mm mm
Punch Plate Winch Arbor Plates
