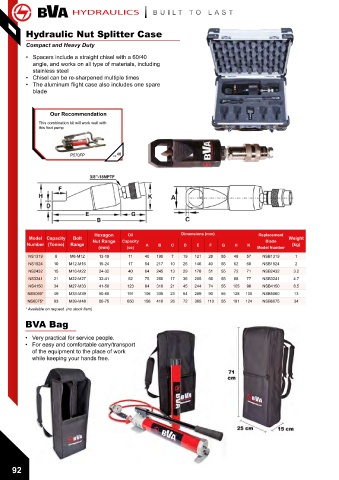

Hydraulic Nut Splitter Case Mini Jacks

Compact and Heavy Duty Compact

• Spacers include a straight chisel with a 60/40 • Low profile mini jack TOOLS AND SPECIALS
angle, and works on all type of materials, including • Compact and lightweight
stainless steel • Convenient for storage
• Chisel can be re-sharpened multiple times
• The aluminum flight case also includes one spare
blade

Our Recommendation
This combination kit will work well with J11050
this foot pump J11100
These mini jacks are lightweight and will fit in the
palm of your hand.

P570FP pg 46
Interchangeable
saddle on model Model Minimum Maximum Hydraulic Base Size Weight
J11050 J11050 and J11055 Capacity Height Height Lifting (L x W)
Number (kg)
(mm) (mm) (mm) (mm)
5 Tonne
49 kN J11050 60 80 20 124 x 116 2.1
5 Tonne J11055 85 123 38 124 x 116 2.4
49 kN
10 Tonne
99 kN J11100 122 163 41 125 x 112 5.7
20 Tonne J11200 130 171 41 137 x 122 7.6
199 kN
Hexagon Oil Dimensions (mm) Replacement
Model Capacity Bolt Weight
Number (Tonne) Range Nut Range Capacity A B C D E F G H K Blade (kg)
(mm) (cc) Model Number
NS1319 6 M6-M12 13-19 11 40 190 7 19 121 28 55 48 57 NSB1319 1
NS1924 10 M12-M16 19-24 17 54 217 10 26 146 40 55 62 60 NSB1924 2 Toe Jacks
NS2432 15 M16-M22 24-32 40 64 245 13 29 178 51 55 72 71 NSB2432 3.2 Hydraulic
press
NS3241 21 M22-M27 32-41 62 75 260 17 36 205 66 55 88 77 NSB3241 4.7 Low Height
NS4150 34 M27-M33 41-50 123 94 310 21 45 244 74 55 105 90 NSB4150 8.5 Manual
Puller
NS5060* 49 M33-M39 50-60 191 106 335 23 54 289 90 55 128 100 NSB5060 13 • Heat treated and chrome plated medium-carbon steel cylinder.
NS6075* 93 M39-M48 60-75 650 156 410 26 72 365 110 55 181 124 NSB6075 34 • Chrome plated plunger improves longer seal life and optimum Hydraulic
puller
* Available on request. (no stock item) performance.
• U.S.Patented by-pass device protects hydraulic system from Bolt puller
kingpin
over travel damage.
BVA Bag • Hydraulic system is protected from internal damage by a press
Pad Eye
• Very practical for service people. patented by-pass mechanism (U.S. Patent No.5946912). tester
• For easy and comfortable carry/transport Valve
Seat
of the equipment to the place of work Puller
while keeping your hands free.
Spreader

Nut splitter
Toe Saddle Head Saddle Hydraulic Base Size
Model Weight Mini Jacks
Capacity Min. Height Max. Height Min. Height Max. Height Lifting (L x W) Toe jacks
Number (kg)
(mm) (mm) (mm) (mm) (mm) (mm)
Bottle
3 Tonne / 29 kN J13060 15 147 229 358 130 152 x 112 16.4 jacks
6 Tonne / 59 kN J13120 23 152 267 396 130 279x 191 24.9 Impact
sockets /
10 Tonne / 99 kN J13200 28 160 279 409 130 295 x 229 38.1 Support
pads
15 Tonne J13300 28 168 333 472 130 318 x 274 52.9
149 kN
