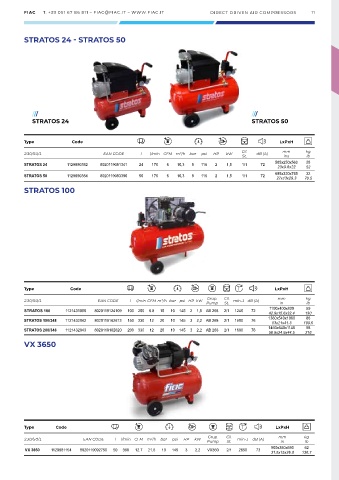

FIAC T. +39 051 67 86 811 – FIAC@FIAC.IT – WWW.FIAC.IT DIRECT DRIVEN AIR COMPRESSORS 11

STRATOS 24 - STRATOS 50

/// ///
STRATOS 24 STRATOS 50

Type Code LxPxH

Cil. mm kg
230/50/1 EAN CODE l l/min CFM m /h bar psi HP kW dB (A)
3
St. ins lb
585x250x560 28
STRATOS 24 1129990382 8020119081341 24 170 6 10,3 8 116 2 1,5 1/1 72
23x9.8x22 52
STRATOS 50 1129990384 8020119083390 50 170 6 10,3 8 116 2 1,5 1/1 72 695x330x745 32
27x13x29.3 70.5
STRATOS 100

Type Code LxPxH
Grup. Cil. mm kg
3
230/50/1 EAN CODE l l/min CFM m /h bar psi HP kW Pump St. min-1 dB (A) in lb
1100x400x830 59
STRATOS 100 1121431055 8020119124109 100 250 8.8 15 10 145 2 1,5 AB 268 2/1 1240 72
42.9x15.6x32.4 130
1360x540x1060 86
STRATOS 150/348 1121432042 8020119162613 150 330 12 20 10 145 3 2,2 AB 268 2/1 1600 76
53x21x41.3 189.6
1460x640x1140 98
STRATOS 200/348 1121432043 8020119162620 200 330 12 20 10 145 3 2,2 AB 268 2/1 1600 76
56.9x24.9x44.5 216
VX 3650

Type Code LxPxH
Grup. Cil. mm kg
3
230/50/1 EAN CODE l l/min CFM m /h bar psi HP kW min-1 dB (A)
Pump St. in lb
800x380x680 62
VX 3650 1129981154 8020119092750 50 360 12.7 21,6 10 145 3 2,2 VX360 2/1 2850 73
31.5x15x26.8 136.7
