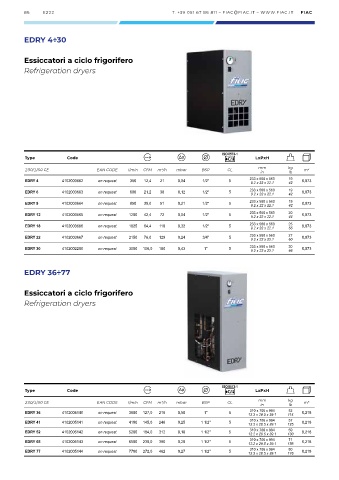

Page 88 - Kolvkompressorer_2022

86 E222 T. +39 051 67 86 811 – FIAC@FIAC.IT – WWW.FIAC.IT FIAC

EDRY 4÷30

Essiccatori a ciclo frigorifero
Refrigeration dryers

Type Code LxPxH
mm kg
230/1/50 CE EAN CODE l/min CFM m /h mbar BSP CL m 3
3
in lb
EDRY 4 4102003662 on request 350 12,4 21 0,04 1/2" 5 233 x 560 x 560 19 0,073
9.2 x 22 x 22.1 42
EDRY 6 4102003663 on request 600 21,2 36 0,12 1/2" 5 233 x 560 x 560 19 0,073
42
9.2 x 22 x 22.1
EDRY 9 4102003664 on request 850 30,0 51 0,21 1/2" 5 233 x 560 x 560 19 0,073
9.2 x 22 x 22.1
42
EDRY 12 4102003665 on request 1200 42,4 72 0,04 1/2" 5 233 x 560 x 560 20 0,073
44
9.2 x 22 x 22.1
EDRY 18 4102003666 on request 1825 64,4 110 0,32 1/2" 5 233 x 560 x 560 25 0,073
9.2 x 22 x 22.1
55
EDRY 22 4102003667 on request 2150 76,0 129 0,24 3/4" 5 233 x 560 x 560 27 0,073
60
9.2 x 22 x 22.1
EDRY 30 4102002200 on request 3000 106,0 180 0,43 1" 5 233 x 560 x 560 30 0,073
9.2 x 22 x 22.1 66
EDRY 36÷77

Essiccatori a ciclo frigorifero
Refrigeration dryers

Type Code LxPxH
mm kg
230/1/50 CE EAN CODE l/min CFM m /h mbar BSP CL m 3
3
in lb
310 x 706 x 994
52
EDRY 36 4102005140 on request 3600 127,0 216 0,50 1" 5 12.2 x 28.5 x 39.1 114 0,218
57
310 x 706 x 994
EDRY 41 4102005141 on request 4100 145,0 246 0,25 1 1/2" 5 12.2 x 28.5 x 39.1 125 0,218
310 x 706 x 994 59
EDRY 52 4102005142 on request 5200 184,0 312 0,18 1 1/2" 5 12.2 x 28.5 x 39.1 130 0,218
310 x 706 x 994 71
EDRY 65 4102005143 on request 6500 230,0 390 0,20 1 1/2" 5 12.2 x 28.5 x 39.1 156 0,218
310 x 706 x 994
80
EDRY 77 4102005144 on request 7700 272,0 462 0,27 1 1/2" 5 12.2 x 28.5 x 39.1 176 0,218
