32 S222 T. +39 051 67 86 811 – FIAC@FIAC.IT – WWW.FIAC.IT FIAC

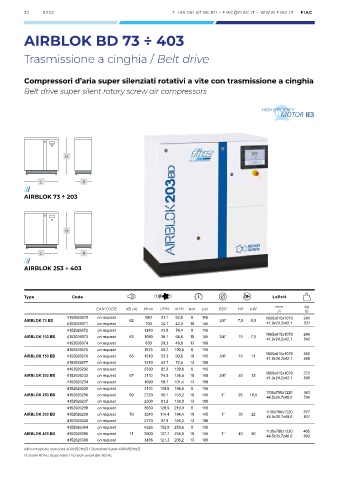

AIRBLOK BD 73 ÷ 403

Trasmissione a cinghia / Belt drive

Compressori d’aria super silenziati rotativi a vite con trasmissione a cinghia

Belt drive super silent rotary screw air compressors

H

L P
///
AIRBLOK 73 ÷ 203

H

L P
///
AIRBLOK 253 ÷ 403

Type Code LxPxH

mm kg
EAN CODE dB (A) l/min CFM m /h bar psi BSP HP kW
3
in lb
4152026070 on request 880 31.1 52,8 8 116 1065x615x1070 241
AIRBLOK 73 BD 62 3/4” 7,5 5,5
4152026071 on request 700 24.7 42,0 10 145 41.9x24.2x42.1 531
4152026072 on request 1240 43.8 74,4 8 116
AIRBLOK 103 BD 4152026073 on request 63 1080 38.1 64,8 10 145 3/4” 10 7,5 1065x615x1070 246
542
41.9x24.2x42.1
4152026074 on request 830 29.3 49,8 13 188
4152026075 on request 1675 59.2 100,5 8 116
AIRBLOK 153 BD 4152026076 on request 65 1510 53.3 90,6 10 145 3/4” 15 11 1065x615x1070 266
586
41.9x24.2x42.1
4152026077 on request 1210 42.7 72,6 13 188
4152026232 on request 2330 82.3 139,8 8 116
AIRBLOK 203 BD 4152026233 on request 67 2110 74.5 126,6 10 145 3/4” 20 15 1065x615x1070 270
595
41.9x24.2x42.1
4152026234 on request 1690 59.7 101,4 13 188
4152026235 on request 3110 109.8 186,6 8 116
AIRBLOK 253 BD 4152026236 on request 69 2720 96.1 163,2 10 145 1” 25 18,5 1130x780x1220 361
796
44.5x30.7x48.0
4152026237 on request 2300 81.2 138,0 13 188
4152026238 on request 3650 128.9 219,0 8 116
AIRBLOK 303 BD 4152026239 on request 70 3240 114.4 194,4 10 145 1” 30 22 1130x780x1220 377
831
44.5x30.7x48.0
4152026240 on request 2770 97.8 166,2 13 188
4152026394 on request 4326 152,8 259,6 8 116
AIRBLOK 403 BD 4152026395 on request 71 3900 137,7 234,0 10 145 1” 40 30 1130x780x1220 405
44.5x30.7x48.0
893
4152026396 on request 3436 121,3 206,2 13 188
Alimentazione standard 400V/50Hz/3 / Standard input 400V/50Hz/3
Versioni 60 Hz disponibili / Version available 60 Hz
