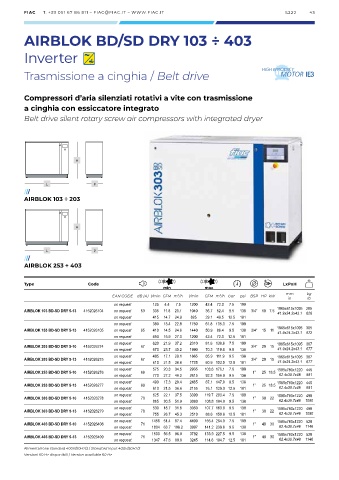

Page 43 - Skruvkompressorer_2022

FIAC T. +39 051 67 86 811 – FIAC@FIAC.IT – WWW.FIAC.IT S222 43

AIRBLOK BD/SD DRY 103 ÷ 403

Inverter

Trasmissione a cinghia / Belt drive

Compressori d’aria silenziati rotativi a vite con trasmissione
a cinghia con essiccatore integrato

Belt drive silent rotary screw air compressors with integrated dryer

H

L P
///
AIRBLOK 103 ÷ 203

H

L P
///
AIRBLOK 253 ÷ 403

Type Code LxPxH
min max
EAN CODE dB (A) l/min CFM m /h l/min CFM m /h bar psi BSP HP kW mm kg
3
3
in lb
on request 125 4.4 7.5 1200 42.4 72.0 7.5 109
AIRBLOK 103 BD-SD DRY 5-13 4152026104 on request 63 335 11.8 20.1 1040 36.7 62.4 9.5 138 3/4” 10 7.5 1065x615x1095 285
628
41.9x24.2x43.1
on request 415 14.7 24.9 825 29.1 49.5 12.5 181
on request 380 13.4 22.8 1750 61.8 105.0 7.5 109
AIRBLOK 153 BD-SD DRY 5-13 4152026105 on request 65 410 14.5 24.6 1440 50.9 86.4 9.5 138 3/4” 15 11 1065x615x1095 305
672
41.9x24.2x43.1
on request 450 15.9 27.0 1200 42.4 72.0 12.5 181
on request 620 21.9 37.2 2310 81.6 138.6 7.5 109 1065x615x1095 307
AIRBLOK 203 BD-SD DRY 5-10 4152026274 67 3/4” 20 15
on request 670 23.7 40.2 1990 70.3 119.4 9.5 138 41.9x24.2x43.1 677
on request 485 17.1 29.1 1865 65.9 111.9 9.5 138 1065x615x1095 307
AIRBLOK 203 BD-SD DRY 5-13 4152026275 67 3/4” 20 15
on request 610 21.5 36.6 1725 60.9 103.5 12.5 181 41.9x24.2x43.1 677
on request 575 20.3 34.5 2935 103.6 176.1 7.5 109 1585x780x1220 445
AIRBLOK 253 BD-SD DRY 5-10 4152026276 69 1” 25 18.5
on request 770 27.2 46.2 2615 92.3 156.9 9.5 138 62.4x30.7x48 981
on request 490 17.3 29.4 2465 87.1 147.9 9.5 138 1585x780x1220 445
AIRBLOK 253 BD-SD DRY 5-13 4152026277 69 1” 25 18.5
on request 610 21.5 36.6 2155 76.1 129.3 12.5 181 62.4x30.7x48 981
on request 625 22.1 37.5 3390 119.7 203.4 7.5 109 1585x780x1220 490
AIRBLOK 303 BD-SD DRY 5-10 4152026278 70 1” 30 22
on request 865 30.5 51.9 3080 108.8 184.8 9.5 138 62.4x30.7x48 1080
on request 530 18.7 31.8 3050 107.7 183.0 9.5 138 1585x780x1220 490
AIRBLOK 303 BD-SD DRY 5-13 4152026279 70 1” 30 22
on request 755 26.7 45.3 2510 88.6 150.6 12.5 181 62.4x30.7x48 1080
on request 1456 51.4 87.4 4400 155.4 264.0 7.5 109 1585x780x1220 520
AIRBLOK 403 BD-SD DRY 5-10 4152026408 71 1” 40 30
on request 1804 63.7 108.2 3997 141.2 239.8 9.5 138 62.4x30.7x48 1146
on request 1600 56.5 96.0 3792 133.9 227.5 9.5 138 1585x780x1220 520
AIRBLOK 403 BD-SD DRY 5-13 4152026409 71 1” 40 30
on request 1347 47.6 80.8 3245 114.6 194.7 12.5 181 62.4x30.7x48 1146
Alimentazione standard 400V/50Hz/3 / Standard input 400V/50Hz/3
Versioni 60 Hz disponibili / Version available 60 Hz
