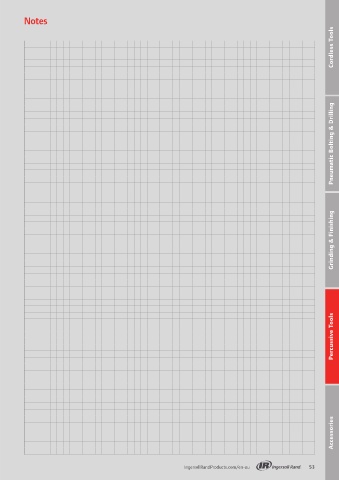

Pneumatic Percussive Tools | Air Chippers Notes
Cordless Tools Cordless Tools

Chisels for W and SA Series chippers

A
B 38 mm

C

Pneumatic Bolting & Drilling

Round collar for rubber buff ered retainer Oval collar for plain arrow retainer
(for W Series) (for SA Series)

Model No. CPN Length (mm) Weight (kg) Model No. CPN Length (mm) Weight (kg)
Round Shank Round Shank
A H3R-215F-12 03225661 305 0.8 A HH1-215F-12 03487923 305 0.8
A H3R-215F-18 03225687 455 1.1 A HH1-215F-18 03487931 455 1.1
A H3R-215F-24 03225703 610 1.3 A HH1-215F-24 03487949 610 1.3
A H3R-215F-36 03225729 915 2.4 A HH1-215F-36 03487956 915 2.4 Grinding & Finishing
B H3R-215B-12 03225745 305 0.8 B HH1-215B-12 91137075 305 0.8
C H3R-215M-12 03225596 305 0.8 C HH1-215M-12 91137034 305 0.8
C H3R-215M-18 92731769 455 1.1 C HH1-215M-18 03487972 455 1.1
C H3R-215M-24 56748650 610 1.3 C HH1-215M-24 03487980 610 1.3
Hexagonal Shank Hexagonal Shank
A H3R-214F-12 03225133 305 0.8 A HH1-214F-12 03221983 305 0.8
A H3R-214F-18 03225158 455 1.1 A HH1-214F-18 03487477 455 1.1
A H3R-214F-24 03225174 610 1.3 A HH1-214F-24 03487485 6 10 1.3
A H3R-214F-36 03225190 915 2.4 A HH1-214F-36 03487493 915 2.4
B H3R-214B-12 03225364 305 0.8 B HH1-214B-12 91137281 305 0.8
C H3R-214M-12 03225059 305 0.8 C HH1-214M-12 03222064 305 0.8
C H3R-214M-18 03225083 455 1.1 C HH1-214M-18 03487501 455 1.1
Percussive Tools
C H3R-214M-24 03225109 610 1.3 C HH1-214M-24 03487519 610 1.3
C H3R-214M-36 03225125 915 2.4 C HH1-214M-36 03487527 915 2.4
