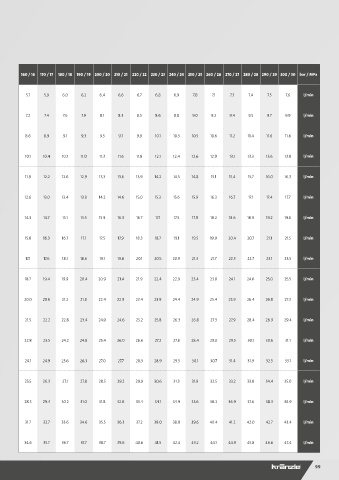

MUNSTYCKSTABELL FLÖDE

Munstycks- Ø 20 / 2 30 / 3 40 / 4 50 / 5 60 / 6 70 / 7 80 / 8 90 / 9 100 / 10 110 / 11 120 / 12 130 / 13 140 / 14 150 / 15 160 / 16 170 / 17 180 / 18 190 / 19 200 / 20 210 / 21 220 / 22 230 / 23 240 / 24 250 / 25 260 / 26 270 / 27 280 / 28 290 / 29 300 / 30 bar / MPa
storlek

0002
1502 0.91 2.0 2.5 2.8 3.2 3.5 3.7 4.0 4.2 4.5 4.7 4.9 5.1 5.3 5.5 5.7 5.9 6.0 6.2 6.4 6.6 6.7 6.8 6.9 7.0 7.1 7.3 7.4 7.5 7.6 l/min
2502

15025
25025 0.98 2.5 3.1 3.6 4.0 4.4 4.8 5.1 5.4 5.7 6.0 6.2 6.5 6.7 7.0 7.2 7.4 7.6 7.9 8.1 8.3 8.5 8.6 8.8 9.0 9.2 9.4 9.5 9.7 9.9 l/min

0003
1503 1.09 3.1 3.7 4.3 4.8 5.3 5.7 6.1 6.3 6.8 7.1 7.4 7.7 8.0 8.3 8.6 8.9 9.1 9.3 9.5 9.7 9.9 10.1 10.3 10.5 10.6 11.2 11.4 11.6 11.8 l/min
2503
4003
15035
25035 1.15 3.6 4.4 5.0 5.6 6.2 6.7 7.1 7.6 8.0 8.4 8.7 9.1 9.4 9.8 10.1 10.4 10.7 11.0 11.3 11.6 11.8 12.1 12.4 12.6 12.9 13.1 13.3 13.6 13.8 l/min

0004
1504 1.19 4.2 5.2 5.9 6.6 7.3 7.8 8.4 8.9 9.4 9.8 10.3 10.7 11.0 11.5 11.9 12.2 12.6 12.9 13.3 13.6 13.9 14.2 14.5 14.8 15.1 15.4 15.7 16.0 16.3 l/min
2504
4004
00045
15045 1.27 4.5 5.5 6.4 7.1 7.8 8.4 9.0 9.6 10.2 10.6 11.0 11.4 11.8 12.2 12.6 13.0 13.4 13.8 14.2 14.6 15.0 15.3 15.6 15.9 16.2 16.7 17.1 17.4 17.7 l/min
25045
40045
0005
1505 1.35 5.0 6.2 7.1 8.0 8.7 9.4 10.0 10.7 11.3 11.9 12.4 12.9 13.4 13.9 14.3 14.7 15.1 15.5 15.9 16.3 16.7 17.1 17.5 17.9 18.2 18.6 18.9 19.2 19.6 l/min
2505
4005
00055
15055
25055 1.4 5.6 6.8 7.8 8.7 9.6 10.3 11.1 11.8 12.4 13.0 13.6 14.2 14.8 15.3 15.8 16.3 16.7 17.1 17.5 17.9 18.3 18.7 19.1 19.5 19.9 20.4 20.7 21.1 21.5 l/min
40055
0006
1506
2506 1.47 6.0 7.4 8.6 9.6 10.4 11.3 12.1 12.8 13.6 14.2 14.8 15.4 16.0 16.6 17.1 17.6 18.1 18.6 19.1 19.6 20.1 20.5 20.9 21.3 21.7 22.3 22.7 23.1 23.5 l/min
4006
00065
15065 1.52 6.6 8.0 9.3 10.4 11.3 12.3 13.2 14.0 14.7 15.4 16.1 16.8 17.4 18.0 18.7 19.4 19.9 20.4 20.9 21.4 21.9 22.4 22.9 23.4 23.8 24.1 24.6 25.0 25.5 l/min
25065
40065
0007
1507 1.6 7.1 8.6 10.0 11.2 12.2 13.2 14.1 15.0 15.3 16.6 17.3 18.0 18.7 19.4 20.0 20.6 21.2 21.8 22.4 22.9 23.4 23.9 24.4 24.9 25.4 25.9 26.4 26.8 27.3 l/min
2507
4007
00075
15075
25075 1.65 7.6 9.3 10.7 12.0 13.1 14.2 15.2 16.1 16.9 17.8 18.6 19.3 20.1 20.8 21.5 22.2 22.8 23.4 24.0 24.6 25.2 25.8 26.3 26.8 27.3 27.9 28.4 28.9 29.4 l/min
40075
0008
1508 1.7 8.0 9.8 11.3 12.7 14.0 15.1 16.1 17.1 18.0 18.8 19.6 20.4 21.2 22.0 22.8 23.5 24.2 24.8 25.4 26.0 26.6 27.2 27.8 28.4 29.0 29.5 30.1 30.6 31.1 l/min
2508
4008
00085
15085 1.75 8.5 10.4 12.1 13.5 14.8 16.0 17.1 18.1 19.1 20.0 20.9 21.8 22.6 23.4 24.1 24.9 25.6 26.3 27.0 27.7 28.3 28.9 29.5 30.1 30.7 31.4 31.9 32.5 33.1 l/min
25085
40085
0009
1509 1.8 9.1 11.1 12.8 14.3 15.7 17.0 18.0 19.2 20.2 21.2 22.1 23.0 23.9 24.7 25.5 26.3 27.1 27.8 28.5 29.2 29.9 30.6 31.3 31.9 32.5 33.2 33.8 34.4 35.0 l/min
2509
4009
0010
1510
2510 1.9 10.0 12.3 14.2 16.0 17.4 18.9 20.1 21.4 22.5 23.6 24.6 25.6 26.6 27.6 28.5 29.4 30.2 31.0 31.8 32.6 33.4 34.1 34.9 35.6 36.3 36.9 37.6 38.3 38.9 l/min
4010

2511 2.6 11.2 13.7 15.9 17.7 19.4 21.0 22.4 23.8 25.1 26.3 27.5 28.6 29.7 30.7 31.7 32.7 33.6 34.6 35.5 36.3 37.2 38.0 38.8 39.6 40.4 41.2 42.0 42.7 43.4 l/min

2512 2.16 12.2 15.0 17.3 19.3 21.2 22.9 24.5 25.9 27.4 28.7 30.0 31.2 32.4 33.5 34.6 35.7 36.7 37.7 38.7 39.6 40.6 41.5 42.4 43.2 44.1 44.9 45.8 46.6 47.4 l/min
