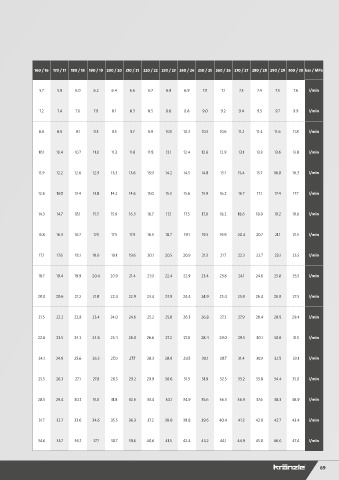

nozzle
sizes Ø 20 / 2 30 / 3 40 / 4 50 / 5 60 / 6 70 / 7 80 / 8 90 / 9 100 / 10 110 / 11 120 / 12 130 / 13 140 / 14 150 / 15 160 / 16 170 / 17 180 / 18 190 / 19 200 / 20 210 / 21 220 / 22 230 / 23 240 / 24 250 / 25 260 / 26 270 / 27 280 / 28 290 / 29 300 / 30 bar / MPa

0002
1502 0.91 2.0 2.5 2.8 3.2 3.5 3.7 4.0 4.2 4.5 4.7 4.9 5.1 5.3 5.5 5.7 5.9 6.0 6.2 6.4 6.6 6.7 6.8 6.9 7.0 7.1 7.3 7.4 7.5 7.6 l/min
2502

15025
25025 0.98 2.5 3.1 3.6 4.0 4.4 4.8 5.1 5.4 5.7 6.0 6.2 6.5 6.7 7.0 7.2 7.4 7.6 7.9 8.1 8.3 8.5 8.6 8.8 9.0 9.2 9.4 9.5 9.7 9.9 l/min

0003
1503
2503 1.09 3.1 3.7 4.3 4.8 5.3 5.7 6.1 6.3 6.8 7.1 7.4 7.7 8.0 8.3 8.6 8.9 9.1 9.3 9.5 9.7 9.9 10.1 10.3 10.5 10.6 11.2 11.4 11.6 11.8 l/min
4003
15035 1.15 3.6 4.4 5.0 5.6 6.2 6.7 7.1 7.6 8.0 8.4 8.7 9.1 9.4 9.8 10.1 10.4 10.7 11.0 11.3 11.6 11.8 12.1 12.4 12.6 12.9 13.1 13.3 13.6 13.8 l/min
25035

0004
1504 1.19 4.2 5.2 5.9 6.6 7.3 7.8 8.4 8.9 9.4 9.8 10.3 10.7 11.0 11.5 11.9 12.2 12.6 12.9 13.3 13.6 13.9 14.2 14.5 14.8 15.1 15.4 15.7 16.0 16.3 l/min
2504
4004
00045
15045
25045 1.27 4.5 5.5 6.4 7.1 7.8 8.4 9.0 9.6 10.2 10.6 11.0 11.4 11.8 12.2 12.6 13.0 13.4 13.8 14.2 14.6 15.0 15.3 15.6 15.9 16.2 16.7 17.1 17.4 17.7 l/min
40045
0005
1505 l/min
2505 1.35 5.0 6.2 7.1 8.0 8.7 9.4 10.0 10.7 11.3 11.9 12.4 12.9 13.4 13.9 14.3 14.7 15.1 15.5 15.9 16.3 16.7 17.1 17.5 17.9 18.2 18.6 18.9 19.2 19.6
4005
00055
15055 1.4 5.6 6.8 7.8 8.7 9.6 10.3 11.1 11.8 12.4 13.0 13.6 14.2 14.8 15.3 15.8 16.3 16.7 17.1 17.5 17.9 18.3 18.7 19.1 19.5 19.9 20.4 20.7 21.1 21.5 l/min
25055
40055
0006
1506 1.47 6.0 7.4 8.6 9.6 10.4 11.3 12.1 12.8 13.6 14.2 14.8 15.4 16.0 16.6 17.1 17.6 18.1 18.6 19.1 19.6 20.1 20.5 20.9 21.3 21.7 22.3 22.7 23.1 23.5 l/min
2506
4006
00065
15065
25065 1.52 6.6 8.0 9.3 10.4 11.3 12.3 13.2 14.0 14.7 15.4 16.1 16.8 17.4 18.0 18.7 19.4 19.9 20.4 20.9 21.4 21.9 22.4 22.9 23.4 23.8 24.1 24.6 25.0 25.5 l/min
40065
0007
1507
2507 1.6 7.1 8.6 10.0 11.2 12.2 13.2 14.1 15.0 15.3 16.6 17.3 18.0 18.7 19.4 20.0 20.6 21.2 21.8 22.4 22.9 23.4 23.9 24.4 24.9 25.4 25.9 26.4 26.8 27.3 l/min
4007
00075
15075 1.65 7.6 9.3 10.7 12.0 13.1 14.2 15.2 16.1 16.9 17.8 18.6 19.3 20.1 20.8 21.5 22.2 22.8 23.4 24.0 24.6 25.2 25.8 26.3 26.8 27.3 27.9 28.4 28.9 29.4 l/min
25075
40075
0008
1508 1.7 8.0 9.8 11.3 12.7 14.0 15.1 16.1 17.1 18.0 18.8 19.6 20.4 21.2 22.0 22.8 23.5 24.2 24.8 25.4 26.0 26.6 27.2 27.8 28.4 29.0 29.5 30.1 30.6 31.1 l/min
2508
4008
00085
15085 l/min
25085 1.75 8.5 10.4 12.1 13.5 14.8 16.0 17.1 18.1 19.1 20.0 20.9 21.8 22.6 23.4 24.1 24.9 25.6 26.3 27.0 27.7 28.3 28.9 29.5 30.1 30.7 31.4 31.9 32.5 33.1
40085
0009
1509 1.8 9.1 11.1 12.8 14.3 15.7 17.0 18.0 19.2 20.2 21.2 22.1 23.0 23.9 24.7 25.5 26.3 27.1 27.8 28.5 29.2 29.9 30.6 31.3 31.9 32.5 33.2 33.8 34.4 35.0 l/min
2509
4009
0010
1510 1.9 10.0 12.3 14.2 16.0 17.4 18.9 20.1 21.4 22.5 23.6 24.6 25.6 26.6 27.6 28.5 29.4 30.2 31.0 31.8 32.6 33.4 34.1 34.9 35.6 36.3 36.9 37.6 38.3 38.9 l/min
2510
4010

2511 2.6 11.2 13.7 15.9 17.7 19.4 21.0 22.4 23.8 25.1 26.3 27.5 28.6 29.7 30.7 31.7 32.7 33.6 34.6 35.5 36.3 37.2 38.0 38.8 39.6 40.4 41.2 42.0 42.7 43.4 l/min

2512 2.16 12.2 15.0 17.3 19.3 21.2 22.9 24.5 25.9 27.4 28.7 30.0 31.2 32.4 33.5 34.6 35.7 36.7 37.7 38.7 39.6 40.6 41.5 42.4 43.2 44.1 44.9 45.8 46.6 47.4 l/min
