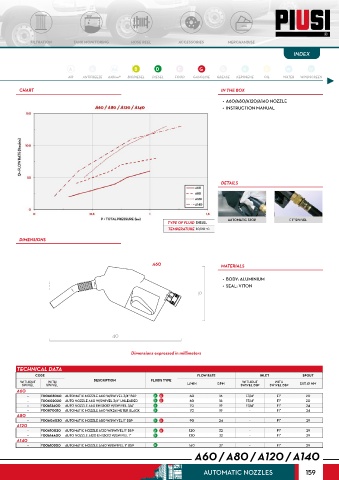

Page 159 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• A60/A80/A120/A140 NOZZLE
• INSTRUCTION MANUAL

DETAILS

AUTOMATIC STOP F 1” SWIVEL
TYPE OF FLUID DIESEL
TEMPERATURE 10/20 °C
DIMENSIONS

A60 MATERIALS

• BODY: ALUMINIUM
• SEAL: VITON
15

40

Dimensions expressed in millimeters

TECHNICAL DATA
CODE FLOW RATE INLET SPOUT
WITHOUT WITH DESCRIPTION FLUIDS TYPE L/MIN GPM WITHOUT WITH EXT. Ø MM
SWIVEL SWIVEL SWIVEL BSP SWIVEL BSP
A60
- F00603060 AUTOMATIC NOZZLE A60 W/SWIVEL 3/4” BSP D G 60 16 F3/4” F1” 20
- F00602020 AUTO NOZZLE A60 W/SWIVEL 3/4” UNLEADED D G 60 16 F3/4” F1” 20
- F00613A00 AUTO NOZZLE A60 EN 13012 W/SWIVEL 3/4” D 70 19 F3/4” F1” 24
- F00870010 AUTOMATIC NOZZLE A60 W/K24 METER BLACK D 70 19 - F1” 24
A80
- F00604030 AUTOMATIC NOZZLE A80 W/SWIVEL 1” BSP D G 90 24 - F1” 29
A120
- F00610020 AUTOMATIC NOZZLE A120 W/SWIVEL 1” BSP D G 120 32 - F1” 29
- F00614A00 AUTO NOZZLE A120 EN 13012 W/SWIVEL 1” D 120 32 - F1” 29
A140
- F00610200 AUTOMATIC NOZZLE A140 W/SWIVEL 1” BSP D 140 37 - F1” 29
A60 / A80 / A120 / A140

AUTOMATIC NOZZLES 159
