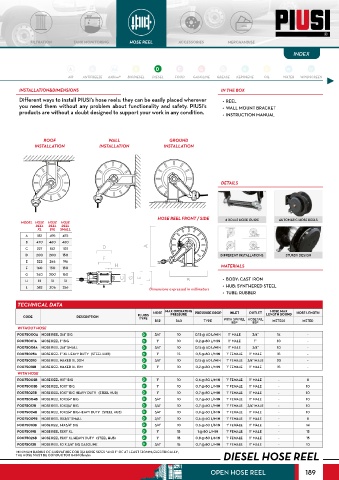

Page 189 - Piusi_Fuel

HOSE REEL
FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

INSTALLATION&DIMENSIONS IN THE BOX
Different ways to install PIUSI’s hose reels: they can be easily placed wherever • REEL
you need them without any problem about functionality and safety. PIUSI’s • WALL MOUNT BRACKET
products are without a doubt designed to support your work in any condition. • INSTRUCTION MANUAL

ROOF WALL GROUND
INSTALLATION INSTALLATION INSTALLATION

DETAILS

HOSE REEL FRONT / SIDE 4 ROLLS HOSE GUIDE AUTOMATIC HOSE REELS
MODEL HOSE HOSE HOSE D
REEL REEL REEL
XL BIG SMALL
A 512 495 475 F
B 470 460 460 H
C 227 152 102 D A
D 200 200 150 DIFFERENT INSTALLATIONS
F G STURDY DESIGN
E
E 322 246 196 C L
A F 160 150 150 H MATERIALS
G 260 200 150
C G E B • BODY: CAST IRON
H 12 12 12 L
L 382 306 256 Dimensions expressed in millimeters • HUB: SYNTHERED STEEL
B • TUBE: RUBBER
TECHNICAL DATA
HOSE MAX
HOSE MAX OPERATING PRESSURE DROP INLET OUTLET LENGTH BOUND HOSE LENGTH
PRESSURE
CODE DESCRIPTION FLUIDS
TYPE
BSP BAR TYPE WITH SWIVEL HOSETAIL METERS METER
BSP
BSP
WITHOUT HOSE
F0075000A HOSE REEL 3/4” BIG D 3/4” 10 0,15 @ 60 L/MIN 1” MALE 3/4” 14 -
F0075001A HOSE REEL 1” BIG D 1” 10 0,2 @ 80 L/MIN 1” MALE 1” 10 -
F0075008A HOSE REEL 3/4” SMALL D 3/4” 10 0,15 @ 60 L/MIN 1” MALE 3/4” 10 -
F0075025A HOSE REEL 1” XL HEAVY DUTY (STEEL HUB) D 1” 15 0,5 @ 80 L/MIN 1” FEMALE 1” MALE 15 -
F00750310 HOSE REEL NAKED XL 20M D 3/4” 10 0,15 @ 60 L/MIN 1” FEMALE 3/4” MALE 20 -
F0075018B HOSE REEL NAKED XL 15M D 1” 10 0,2 @ 80 L/MIN 1” FEMALE 1” MALE 15 -
WITH HOSE
F0075002B HOSE REEL 8X1” BIG D 1” 10 0,6 @ 80 L/MIN 1” FEMALE 1” MALE - 8
F0075003B HOSE REEL 10X1” BIG D 1” 10 0,7 @ 80 L/MIN 1” FEMALE 1” MALE - 10
F0075023B HOSE REEL 10X1” BIG HEAVY DUTY (STEEL HUB) D 1” 10 0,7 @ 80 L/MIN 1” FEMALE 1” MALE - 10
F0075004B HOSE REEL 10X3/4” BIG D 3/4” 10 0,7 @ 60 L/MIN 1” FEMALE 1” MALE - 10
F0075012B HOSE REEL 10X3/4” BIG D 3/4” 10 0,7 @ 60 L/MIN 1” FEMALE 3/4” MALE - 10
F0075024B HOSE REEL 10X3/4” BIG HEAVY DUTY (STEEL HUB) D 3/4” 10 0,9 @ 60 L/MIN 1” FEMALE 1” MALE - 10
F0075009B HOSE REEL 8X3/4” SMALL D 3/4” 10 0,6 @ 60 L/MIN 1” FEMALE 1” MALE - 8
F0075010B HOSE REEL 14X3/4” BIG D 3/4” 10 0,6 @ 60 L/MIN 1” FEMALE 1” MALE - 14
F0075019B HOSE REEL 15X1” XL D 1” 15 1 @ 80 L/MIN 1” FEMALE 1” MALE - 15
F0075026B HOSE REEL 15X1” XL HEAVY DUTY (STEEL HUB) D 1” 15 0,8 @ 80 L/MIN 1” FEMALE 1” MALE - 15
F0075013B HOSE REEL 10 X 3/4” BIG GASOLINE D 3/4” 15 0,7 @ 80 L/MIN 1” FEMALE 1” MALE - 10
MINIMUM RADIUS OF CURVATURE FOR 3/4 HOSE SIZES “AND 1” OF AT LEAST 130MM; ELECTRICALLY,
THE HOSE MUST BE CONDUCTOR R<1 MOhm/m DIESEL HOSE REEL

OPEN HOSE REEL 189
