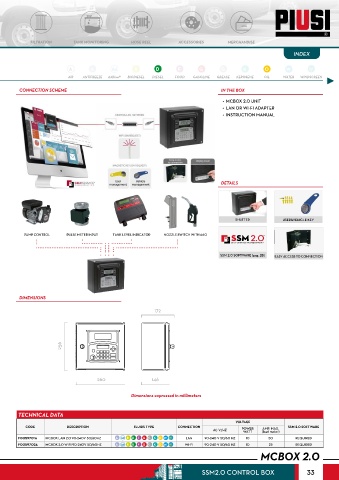

Page 33 - Piusi_Fuel
P. 33
FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX
A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN
CONNECTION SCHEME
CHART IN THE BOX
• MCBOX 2.0 UNIT
• LAN OR WI-FI ADAPTER
• INSTRUCTION MANUAL
DETAILS
SHUTTER USER&VEHICLE KEY
TANK LEVEL INDICATOR
PULSE METER INPUT
PUMP CONTROL PULSE METER INPUT TANK LEVEL INDICATOR NOZZLE SWITCH WITH A
PUMP CONTROL
NOZZLE SWITCH WITH A
DIMENSIONS SSM
SSM 2.0 SOFTWARE (pag. 28) EASY ACCESS TO CONNECTION
MATERIALS
DIMENSIONS
172
256
260 146
Dimensions expressed in millimeters
TECHNICAL DATA
VOLTAGE
CODE DESCRIPTION FLUIDS TYPE CONNECTION POWER AMP. MAX. SSM 2.0 SOFTWARE
AC V./HZ WATT (load motor)
F0059701A MCBOX LAN 2.0 90-240V 50/60HZ A Ad B D F G G R K O W W S LAN 90-240 V 50/60 HZ 10 50 REQUIRED
F0059702A MCBOX 2.0 WIFI 90-240V 50/60HZ A Ad B D F G G R K O W W S WI-FI 90-240 V 50/60 HZ 10 25 REQUIRED
MCBOX 2.0
SSM2.0 CONTROL BOX 33
