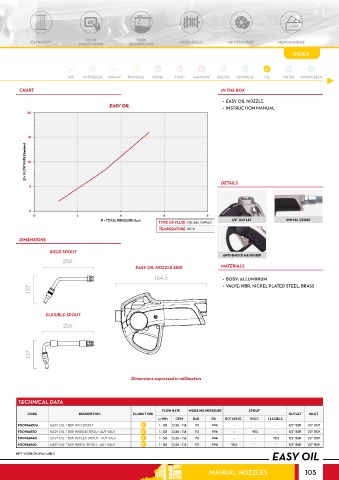

Page 105 - Piusi_Lube

FILTRATION FLUID TANK HOSE REELS ACCESSORIES MERCHANDISE
MONITORING MONITORING
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• EASY OIL NOZZLE
• INSTRUCTION MANUAL

DETAILS

1/2” OUTLET SWIVEL 1/2 BSP
TYPE OF FLUID OIL SAE 10W40
TEMPERATURE 23 °C
DIMENSIONS
RIGID SPOUT
ANTI-SHOCK HANDGRIP
256
EASY OIL NOZZLE SIDE MATERIALS
164,5 • BODY: ALLUMINIUM
137 • VALVE: NBR, NICKEL PLATED STEEL, BRASS

FLEXIBLE SPOUT

256

137

Dimensions expressed in millimeters

TECHNICAL DATA

FLOW RATE WORKING PRESSURE SPOUT
CODE DESCRIPTION FLUIDS TYPE OUTLET INLET
L/MIN GPM BAR PSI ROTATING RIGID FLEXIBLE
F0096600A EASY OIL ½” BSP W/O SPOUT O 1 - 30 0,26 - 7,8 70 994 - - - 1/2” BSP 1/2” BSP
F00966130 EASY OIL ½” BSP W/RIGID SPOU - AUT VALV O 1 - 30 0,26 - 7,8 70 994 - YES - 1/2” BSP 1/2” BSP
F00966140 EASY OIL ½” BSP W/FLEX SPOUT - AUT VALV O 1 - 30 0,26 - 7,8 70 994 - - YES 1/2” BSP 1/2” BSP
F00966150 EASY OIL ½” BSP W/ROT SPOUT - AUT VALV O 1 - 30 0,26 - 7,8 70 994 YES - - 1/2” BSP 1/2” BSP
EASY OIL
NPT VERSION AVAILABLE

MANUAL NOZZLES 105
