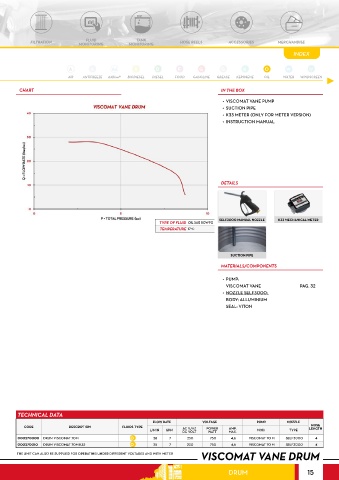

Page 15 - Piusi_Lube

FILTRATION FLUID TANK HOSE REELS ACCESSORIES MERCHANDISE
MONITORING MONITORING
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• VISCOMAT VANE PUMP
• SUCTION PIPE
• K33 METER (ONLY FOR METER VERSION)
• INSTRUCTION MANUAL

DETAILS

SELF3000 MANUAL NOZZLE K33 MECHANICAL METER
TYPE OF FLUID OIL SAE 80W90
TEMPERATURE 17°C
DIMENSIONS

SUCTION PIPE
MA
TERIALS
MATERIALS/COMPONENTS
• PUMP:
VISCOMAT VANE PAG. 32
• NOZZLE SELF3000:
BODY: ALLUMINIUM
SEAL: VITON

TECHNICAL DATA
FLOW RATE VOLTAGE PUMP NOZZLE
HOSE
CODE DESCRIPTION FLUIDS TYPE AC V./HZ POWER AMP. LENGTH
L/MIN GPM DC VOLT WATT MAX. MOD. TYPE
000270000 DRUM VISCOMAT 70M O 28 7 230 750 4,6 VISCOMAT 70 M SELF3000 4
000270010 DRUM VISCOMAT 70M K33 O 25 7 230 750 4,6 VISCOMAT 70 M SELF3000 4
VISCOMAT VANE DRUM
THE UNIT CAN ALSO BE SUPPLIED FOR OPERATING UNDER DIFFERENT VOLTAGES AND WITH METER

DRUM 15
