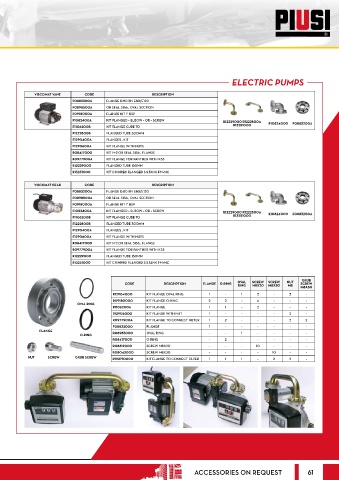

Page 61 - Piusi_Lube

ELECTRIC PUMPS

VISCOMAT VANE CODE DESCRIPTION
F0883200A FLANGE D.80 1IN E80/E120
F0898500A OR SEAL 3156 , OVAL SECTION
F0918000A FLANGE KIT 1" BSP
F1082400A KIT FLANGED + ELBOW + OR + SCREW R12229000 R1222800A R10824000 F0883200A
F1106200B KIT FLANGE CUBE 70 R13251000
F1222800B FLANGED TUBE 300MM
F1290400A FLANGES , KIT
F1290600A KIT FLANGE WITH NUTS
R08417000 KIT N°2 OR SEAL 3156 , FLANGE
R0977900A KIT FLANGE FOR PANTHER WITH K33
R12229000 FLANGED TUBE 130MM
R13251000 KIT CRIMPED FLANGED S.S.TANK FM+MC

VISCOMAT GEAR CODE DESCRIPTION
F0883200A FLANGE D.80 1IN E80/E120
F0898500A OR SEAL 3156 , OVAL SECTION
F0918000A FLANGE KIT 1" BSP
F1082400A KIT FLANGED + ELBOW + OR + SCREW R12229000 R1222800A R10824000 F0883200A
F1106200B KIT FLANGE CUBE 70 R13251000
F1222800B FLANGED TUBE 300MM
F1290400A FLANGES , KIT
F1290600A KIT FLANGE WITH NUTS
R08417000 KIT N°2 OR SEAL 3156 , FLANGE
R0977900A KIT FLANGE FOR PANTHER WITH K33
R12229000 FLANGED TUBE 130MM
R13251000 KIT CRIMPED FLANGED S.S.TANK FM+MC

GRUB
OVAL SCREW SCREW NUT
CODE DESCRIPTION FLANGE O-RING SCREW
RING M8X20 M8X30 M8
M8X50
R12904000 KIT FLANGE OVAL RING 1 - 1 2 - 2 -
R09180000 KIT FLANGE O-RING 2 2 - 4 - - -
OVAL RING
R1106200A KIT FLANGE 1 1 - 2 - - -
R12906000 KIT FLANGE WITH NUT 1 - - - - 2 -
R0977900A KIT FLANGE TO CONNECT METER 1 2 - - - 2 2
F08832000 FLANGE 1 - - - - - -
FLANGE
O-RING R08985000 OVAL RING - - 1 - - - -
R08417000 O-RING - 2 - - - - -
R08812000 SCREW M8X20 - - - 10 - - -
R08043000 SCREW M8X30 - - - - 10 - -
NUT SCREW GRUB SCREW R192710000 KIT FLANGE TO CONNECT FILTER 1 1 1 - 2 2 -

ACCESSORIES ON REQUEST 61
