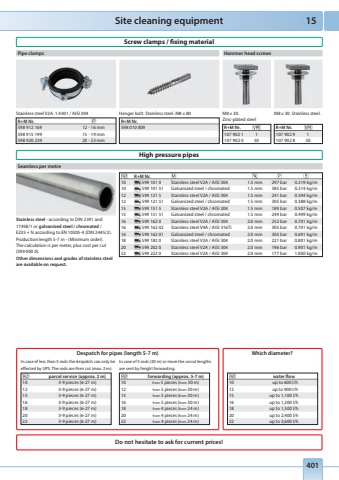

15401Site cleaning equipmentScrew clamps / fixing materialHigh pressure pipesSeamless per metrePipe clampsStainless steel V2A. 1.4301 / AISI 304 Hanger bolt. Stainless steel. M8 x 80water flow10 up to 600 l/h12 up to 900 l/h15 up to 1,100 l/h16 up to 1,200 l/h18 up to 1,500 l/h20 up to 2,400 l/h22 up to 3,600 l/hparcel service (approx. 2 m)10 3-9 pieces (6-27 m)12 3-9 pieces (6-27 m)15 3-9 pieces (6-27 m)16 3-9 pieces (6-27 m)18 3-9 pieces (6-27 m)20 3-9 pieces (6-27 m)22 3-9 pieces (6-27 m)forwarding (approx. 5-7 m)10 from 5 pieces (from 30 m)12 from 5 pieces (from 30 m)15 from 5 pieces (from 30 m)16 from 5 pieces (from 30 m)18 from 4 pieces (from 24 m)20 from 4 pieces (from 24 m)22 from 4 pieces (from 24 m)In case of 5 rods (30 m) or more the uncut lengths are sent by freight forwarding.In case of less than 5 rods the despatch can only be effected by UPS. The rods are then cut (max. 2 m).R+M Nr.598 912 169 12 - 16 mm598 915 199 15 - 19 mm598 920 239 20 - 23 mmR+M Nr.598 010 809Do not hesitate to ask for current prices!Despatch for pipes (length 5-7 m) Which diameter?M8 x 30. Zinc-plated steelM8 x 30. Stainless steel.R+M Nr.107 902 1 1107 902 0 50R+M Nr.107 902 9 1107 902 8 50Hammer head screwsStainless steel - according to DIN 2391 and 17458/1 or galvanized steel / chromated / E235 + N according to EN 10305-4 (DIN 2445/2). Production length 5-7 m - (Minimum order). The calculation is per meter, plus cost per cut (599 000 0).Other dimensions and grades of stainless steel are available on request.R+M Nr.10 599 101 0 Stainless steel V2A / AISI 304 1.5 mm 297 bar 0.319 kg/m10 599 101 51 Galvanized steel / chromated 1.5 mm 385 bar 0.314 kg/m12 599 121 5 Stainless steel V2A / AISI 304 1.5 mm 241 bar 0.394 kg/m12 599 121 51 Galvanized steel / chromated 1.5 mm 305 bar 0.388 kg/m15 599 151 5 Stainless steel V2A / AISI 304 1.5 mm 189 bar 0.507 kg/m15 599 151 51 Galvanized steel / chromated 1.5 mm 249 bar 0.499 kg/m16 599 162 0 Stainless steel V2A / AISI 304 2.0 mm 252 bar 0.701 kg/m16 599 162 02 Stainless steel V4A / AISI 316Ti 2.0 mm 305 bar 0.701 kg/m16 599 162 01 Galvanized steel / chromated 2.0 mm 305 bar 0.691 kg/m18 599 182 0 Stainless steel V2A / AISI 304 2.0 mm 221 bar 0.801 kg/m20 599 202 0 Stainless steel V2A / AISI 304 2.0 mm 196 bar 0.901 kg/m22 599 222 0 Stainless steel V2A / AISI 304 2.0 mm 177 bar 1.000 kg/m
