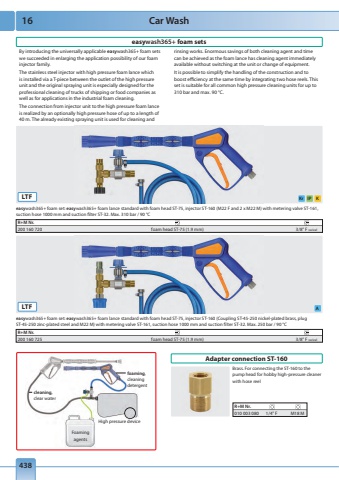

16438ALTF Kr IP KLTFCar WashBy introducing the universally applicable easywash365+ foam sets we succeeded in enlarging the application possibility of our foam injector family.The stainless steel injector with high pressure foam lance which is installed via a T-piece between the outlet of the high pressure unit and the original spraying unit is especially designed for the professional cleaning of trucks of shipping or food companies as well as for applications in the industrial foam cleaning. The connection from injector unit to the high pressure foam lance is realized by an optionally high pressure hose of up to a length of 40 m. The already existing spraying unit is used for cleaning and rinsing works. Enormous savings of both cleaning agent and time can be achieved as the foam lance has cleaning agent immediately available without switching at the unit or change of equipment. It is possible to simplify the handling of the construction and to boost efficiency at the same time by integrating two hose reels. This set is suitable for all common high pressure cleaning units for up to 310 bar and max. 90 %u00b0C.easywash365+ foam setseasywash365+ foam set: easywash365+ foam lance standard with foam head ST-75, injector ST-160 (M22 F and 2 x M22 M) with metering valve ST-161, suction hose 1000 mm and suction filter ST-32. Max. 310 bar / 90 %u00b0Ceasywash365+ foam set: easywash365+ foam lance standard with foam head ST-75, injector ST-160 (Coupling ST-45-250 nickel-plated brass, plug ST-45-250 zinc-plated steel and M22 M) with metering valve ST-161, suction hose 1000 mm and suction filter ST-32. Max. 250 bar / 90 %u00b0CR+M Nr. 200 160 720 foam head ST-75 (1.9 mm) 3/8\R+M Nr. 200 160 725 foam head ST-75 (1.9 mm) 3/8\foaming, cleaning detergentcleaning, clear waterHigh pressure deviceFoaming agentsR+M Nr. 010 003 080 1/4\M18 MAdapter connection ST-160Brass. For connecting the ST-160 to the pump head for hobby high-pressure cleaner with hose reel
