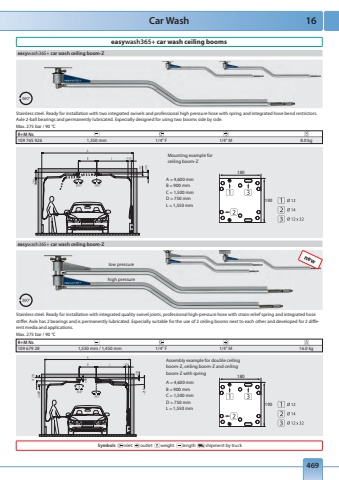

1646919018019018090>260>5021070 >120Car Washeasywash365+ car wash ceiling boomseasywash365+ car wash ceiling boom-Zeasywash365+ car wash ceiling boom-ZStainless steel. Ready for installation with two integrated swivels and professional high pressure hose with spring and integrated hose bend restrictors. Axle 2-ball bearings and permanently lubricated. Especially designed for using two booms side by side. Max. 275 bar / 90 %u00b0CStainless steel. Ready for installation with integrated quality swivel joints, professional high-pressure hose with strain relief spring and integrated hosestiffer. Axle has 2 bearings and is permanently lubricated. Especially suitable for the use of 2 ceiling booms next to each other and developed for 2 different media and applications. Max. 275 bar / 90 %u00b0CR+M Nr.109 765 926 1,550 mm 1/4\1/4\8.0 kgR+M Nr.109 679 28 1,550 mm 1/4\1/4\16.0 kgMounting example for ceiling boom-ZAssembly example for double ceiling boom-Z, ceiling boom-Z and ceilingboom-Z with springA = 4,600 mmB = 900 mmC = 1,500 mmD = 750 mmL = 1,550 mmA = 4,600 mmB = 900 mmC = 1,500 mmD = 750 mmL = 1,550 mmSymbols inlet outlet weight length shipment by truck low pressurehigh pressurenew
