09 Spray guns

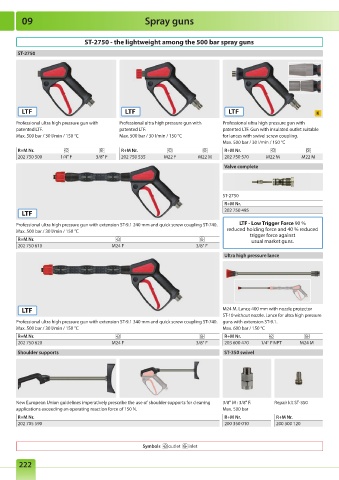

ST-2750 - the lightweight among the 500 bar spray guns
ST-2750

LTF LTF LTF K
Professional ultra high pressure gun with Professional ultra high pressure gun with Professional ultra high pressure gun with
patented LTF. patented LTF. patented LTF. Gun with insulated outlet suitable
Max. 500 bar / 30 l/min / 150 °C Max. 500 bar / 30 l/min / 150 °C for lances with swivel screw coupling.
Max. 500 bar / 30 l/min / 150 °C
R+M Nr. R+M Nr. R+M Nr.
202 750 500 1/4" F 3/8" F 202 750 535 M22 F M22 M 202 750 570 M22 M M22 M
Valve complete

ST-2750
R+M Nr.
202 750 495
LTF
Professional ultra high pressure gun with extension ST-9.1 240 mm and quick screw coupling ST-740. LTF - Low Trigger Force 90 %
reduced holding force and 40 % reduced
Max. 500 bar / 30 l/min / 150 °C
trigger force against
R+M Nr.
usual market guns.
202 750 610 M24 F 3/8" F
Ultra high pressure lance

LTF M24 M. Lance 400 mm with nozzle protector
ST-10 without nozzle. Lance for ultra high pressure
Professional ultra high pressure gun with extension ST-9.1 340 mm and quick screw coupling ST-740. guns with extension ST-9.1.
Max. 500 bar / 30 l/min / 150 °C Max. 600 bar / 150 °C
R+M Nr. R+M Nr.
202 750 620 M24 F 3/8" F 203 600 470 1/4" F NPT M24 M
Shoulder supports ST-350 swivel

New European Union guidelines imperatively prescribe the use of shoulder supports for cleaning 3/8" M : 3/8" F. Repair kit ST-350
applications exceeding an operating reaction force of 150 N. Max. 500 bar
R+M Nr. R+M Nr. R+M Nr.
202 705 590 200 350 010 200 300 120

Symbols outlet inlet

222
