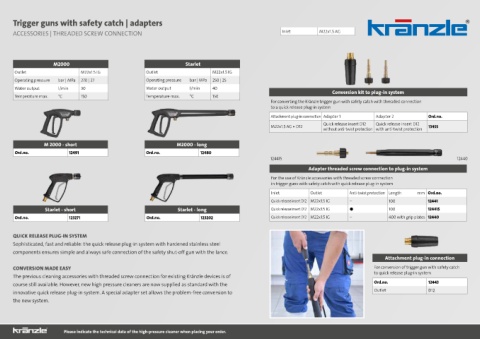

Trigger guns with safety catch | adapters
ACCESSORIES | THREADED SCREW CONNECTION Inlet M22x1.5 AG

M2000 Starlet
Outlet M22x1.5 IG Outlet M22x1.5 IG
Operating pressure bar | MPa 270 | 27 Operating pressure bar | MPa 250 | 25
Water output l/min 30 Water output l/min 40
Conversion kit to plug-in system
Temperature max. °C 150 Temperature max. °C 150
For converting the Kränzle trigger gun with safety catch with threaded connection
to a quick release plug-in system
Attachment plug-in connection Adapter 1 Adapter 2 Ord.no.
Quick release insert D12 Quick release insert D12
M22x1.5 AG ▹ D12 13455
without anti-twist protection with anti-twist protection
M 2000 - short M2000 - long
Ord.no. 12491 Ord.no. 12480
124415 12440
Adapter threaded screw connection to plug-in system
For the use of Kränzle accessories with threaded screw connection
in trigger guns with safety catch with quick release plug-in system
Inlet Outlet Anti-twist protection Length mm Ord.no.
Quick release insert D12 M22x1.5 IG – 100 12441
Starlet - short Starlet - long Quick release insert D12 M22x1.5 IG ● 100 124415
Ord.no. 123271 Ord.no. 123202 Quick release insert D12 M22x1.5 IG – 400 with grip plates 12440

QUICK RELEASE PLUG-IN SYSTEM
Sophisticated, fast and reliable: the quick release plug-in system with hardened stainless steel
components ensures simple and always safe connection of the safety shut-off gun with the lance.
Attachment plug-in connection
CONVERSION MADE EASY For conversion of trigger gun with safety catch
to quick release plug-in system
The previous cleaning accessories with threaded screw connection for existing Kränzle devices is of
course still available. However, new high pressure cleaners are now supplied as standard with the Ord.no. 12443
innovative quick release plug-in system. A special adapter set allows the problem-free conversion to Outlet D12
the new system.

Please indicate the technical data of the high-pressure cleaner when placing your order.
