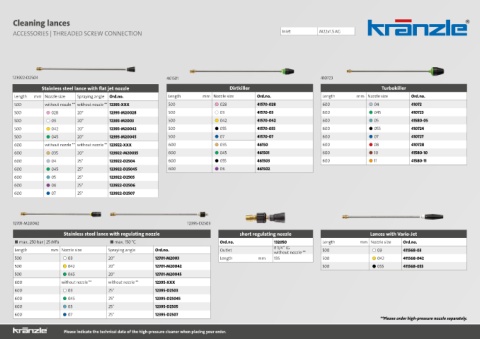

Page 3 - Kraenzle_tillbehörM22

Cleaning lances
ACCESSORIES | THREADED SCREW CONNECTION Inlet M22x1.5 AG

123922-D2504 461501 410723

Stainless steel lance with flat jet nozzle Dirtkiller Turbokiller
Length mm Nozzle size Spraying angle Ord.no. Length mm Nozzle size Ord.no. Length mm Nozzle size Ord.no.
500 without nozzle ** without nozzle ** 12393-XXX 500 ● ● 028 41570-028 600 ● ● 04 41072
500 ● ● 028 20° 12393-M20028 500 ● ● 03 41570-03 600 ● ● 045 410723
500 ● ● 03 20° 12393-M2003 500 ● ● 042 41570-042 600 ● ● 05 41580-05
500 ● ● 042 20° 12393-M20042 500 ● ● 055 41570-055 600 ● ● 055 410724
500 ● ● 045 20° 12393-M20045 500 ● ● 07 41570-07 600 ● ● 07 410727
600 without nozzle ** without nozzle ** 123922-XXX 600 ● ● 035 46150 600 ● ● 08 410728
600 ● ● 035 20° 123922-M20035 600 ● ● 045 461501 600 ● ● 10 41580-10
600 ● ● 04 25° 123922-D2504 600 ● ● 055 461503 600 ● ● 11 41580-11
600 ● ● 045 25° 123922-D25045 600 ● ● 06 461502
600 ● ● 05 25° 123922-D2505
600 ● ● 06 25° 123922-D2506
600 ● ● 07 25° 123922-D2507

12701-M20042 12395-D2503

Stainless steel lance with regulating nozzle short regulating nozzle Lances with Vario-Jet
■ max. 250 bar | 25 MPa ■ max. 150 °C Ord.no. 132050 Length mm Nozzle size Ord.no.
Length mm Nozzle size Spraying angle Ord.no. Outlet R 1/4“ IG 500 ● ● 03 411568-03
without nozzle **
500 ● ● 03 20° 12701-M2003 Length mm 135 500 ● ● 042 411568-042
500 ● ● 042 20° 12701-M20042 500 ● ● 055 411568-055
500 ● ● 045 20° 12701-M20045
600 without nozzle ** without nozzle ** 12395-XXX
600 ● ● 03 25° 12395-D2503
600 ● ● 045 25° 12395-D25045
600 ● ● 05 25° 12395-D2505
600 ● ● 07 25° 12395-D2507
**Please order high-pressure nozzle separately.

Please indicate the technical data of the high-pressure cleaner when placing your order.
