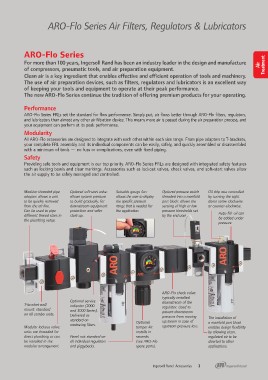

Page 3 - Accessories Airline & Tool Accessories

ARO-Flo Series Air Filters, Regulators & Lubricators

ARO-Flo Series Air
Treatment
For more than 100 years, Ingersoll Rand has been an industry leader in the design and manufacture
of compressors, pneumatic tools, and air preparation equipment.
Clean air is a key ingredient that enables effective and efficient operation of tools and machinery.
The use of air preparation devices, such as filters, regulators and lubricators is an excellent way
of keeping your tools and equipment to operate at their peak performance.
The new ARO-Flo Series continue the tradition of offering premium products for your operating.

Performance

ARO-Flo Series FRLs set the standard for flow performance. Simply put, air flows better through ARO-Flo filters, regulators,
and lubricators than almost any other air filtration device. This means more air is passed during the air preparation process, and
your equipment can perform at its peak performance.

Modularity

All ARO-Flo accessories are designed to integrate with each other within each size range. From pipe adapters to T-brackets,
your complete FRL assembly and its individual components can be easily, safely, and quickly assembled or disassembled
with a minimum of tools — no fuss or complications, even with fixed piping.

Safety

Providing safe tools and equipment is our top priority. ARO-Flo Series FRLs are designed with integrated safety features
such as locking bowls and clear markings. Accessories such as lockout valves, check valves, and soft-start valves allow
the air supply to be safely managed and controlled.

Modular threaded pipe Optional soft-start valve: Settable gauge fan: Optional pressure switch Oil drip rate controlled
adapter: allows a unit allows system pressure allows the user to display threaded into a manifold by turning the sight
to be quickly removed to build gradually, for the specific pressure port block: allows the dome screw clockwise
from the air line. downstream equipment range that is needed for sensing of high or low or counter-clockwise.
Can be used to pipe protection and safer the application. pressure thresholds set
different thread sizes in start-up. by the end user. Auto-fill: oil can
the plumbing setup. be added under
pressure.

T-bracket wall Optional service Optional ARO-Flo check valve: The installation of
mount: standard indicator (2000 tamper kit typically installed a manifold port block
on all combo units. and 3000 Series). installs in downstream of the enables design flexibility
Delivered as seconds regulator. Used to by allowing clean,
Modular lockout valve: standard on (see ARO-Flo prevent downstream regulated air to be
units are threaded for coalescing filters. spare parts). pressure from moving diverted to other
direct plumbing or can upstream in case of applications.
be installed in the Panel nut: standard on upstream pressure loss.
modular arrangement. all individual regulators
and piggybacks.
