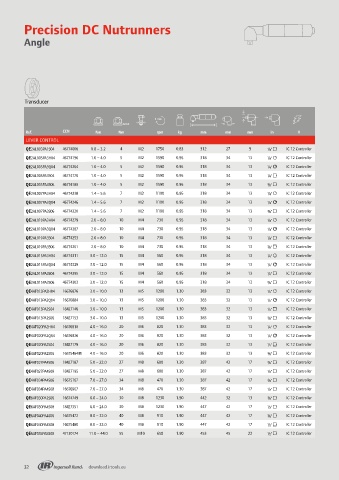

Page 32 - Assembly_Solutions

Precision DC Nutrunners

Angle

Transducer

Ref. CCN Nm Nm rpm kg mm mm mm in V
LEVER CONTROL
QE2AL003PA1S04 46774006 0.8 – 3.2 4 M2 1750 0.83 312 27 9 1/4" IC 12 Controller
QE2AL005PA3H04 46774196 1.0 – 4.0 5 M2 1590 0.95 318 34 13 1/4" IC 12 Controller
QE2AL005PA3Q04 46774204 1.0 – 4.0 5 M2 1590 0.95 318 34 13 1/4" IC 12 Controller
QE2AL005PA3S04 46774170 1.0 – 4.0 5 M2 1590 0.95 318 34 13 1/4" IC 12 Controller
QE2AL005PA3S06 46774188 1.0 – 4.0 5 M2 1590 0.95 318 34 13 3/8" IC 12 Controller
QE2AL007PA3H04 46774238 1.4 – 5.6 7 M2 1100 0.95 318 34 13 1/4" IC 12 Controller
QE2AL007PA3Q04 46774246 1.4 – 5.6 7 M2 1100 0.95 318 34 13 1/4" IC 12 Controller
QE2AL007PA3S06 46774220 1.4 – 5.6 7 M2 1100 0.95 318 34 13 3/8" IC 12 Controller
QE2AL010PA3H04 46774279 2.0 – 8.0 10 M4 730 0.95 318 34 13 1/4" IC 12 Controller
QE2AL010PA3Q04 46774287 2.0 – 8.0 10 M4 730 0.95 318 34 13 1/4" IC 12 Controller
QE2AL010PA3S04 46774253 2.0 – 8.0 10 M4 730 0.95 318 34 13 1/4" IC 12 Controller
QE2AL010PA3S06 46774261 2.0 – 8.0 10 M4 730 0.95 318 34 13 3/8" IC 12 Controller
QE2AL015PA3H04 46774311 3.0 – 12.0 15 M4 560 0.95 318 34 13 1/4" IC 12 Controller
QE2AL015PA3Q04 46774329 3.0 – 12.0 15 M4 560 0.95 318 34 13 1/4" IC 12 Controller
QE2AL015PA3S04 46774295 3.0 – 12.0 15 M4 560 0.95 318 34 13 1/4" IC 12 Controller
QE2AL015PA3S06 46774303 3.0 – 12.0 15 M4 560 0.95 318 34 13 3/8" IC 12 Controller
QE4AT013PA2H04 16676876 3.0 – 10.0 13 M5 1200 1.30 383 32 13 1/4" IC 12 Controller
QE4AT013PA2Q04 16676884 3.0 – 10.0 13 M5 1200 1.30 383 32 13 1/4" IC 12 Controller
QE4AT013PA2S04 18427146 3.0 – 10.0 13 M5 1200 1.30 383 32 13 1/4" IC 12 Controller
QE4AT013PA2S06 18427153 3.0 – 10.0 13 M5 1200 1.30 383 32 13 3/8" IC 12 Controller
QE4AT020PA2H04 16676918 4.0 – 16.0 20 M6 820 1.30 383 32 13 1/4" IC 12 Controller
QE4AT020PA2Q04 16676926 4.0 – 16.0 20 M6 820 1.30 383 32 13 1/4" IC 12 Controller
QE4AT020PA2S04 18427179 4.0 – 16.0 20 M6 820 1.30 383 32 13 1/4" IC 12 Controller
QE4AT020PA2S06 16675464IRI 4.0 – 16.0 20 M6 820 1.30 383 32 13 3/8" IC 12 Controller
QE4AT027PA4S06 18427187 5.0 – 22.0 27 M8 600 1.30 387 42 17 3/8" IC 12 Controller
QE4AT027PA4S08 18427195 5.0 – 22.0 27 M8 600 1.30 387 42 17 1/2" IC 12 Controller
QE4AT034PA4S06 16675167 7.0 – 27.0 34 M8 470 1.30 387 42 17 3/8" IC 12 Controller
QE4AT034PA4S08 16676967 7.0 – 27.0 34 M8 470 1.30 387 42 17 1/2" IC 12 Controller
QE6AT030PA2S06 16674749 6.0 – 24.0 30 M8 1230 1.90 442 32 13 3/8" IC 12 Controller
QE6AT030PA4S08 18427351 6.0 – 24.0 30 M8 1230 1.90 447 42 17 1/2" IC 12 Controller
QE6AT040PA4S06 16675472 8.0 – 32.0 40 M8 910 1.90 447 42 17 3/8" IC 12 Controller
QE6AT040PA4S08 16675480 8.0 – 32.0 40 M8 910 1.90 447 42 17 1/2" IC 12 Controller
QE6AT055PA5S08 47130174 11.0 – 44.0 55 M10 650 1.90 453 45 22 1/2" IC 12 Controller

32 download.irtools.eu
