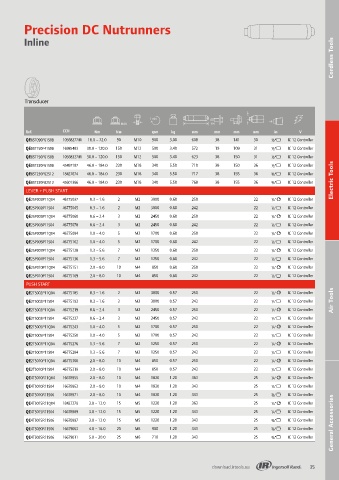

Page 35 - Assembly_Solutions

Precision DC Nutrunners

Inline
Cordless Tools Cordless Tools

Transducer

Ref. CCN Nm Nm rpm kg mm mm mm mm in V
QE8ST090F61S08 10568277IRI 18.0 – 72.0 90 M10 900 3.00 608 38 141 30 1/2" IC 12 Controller
QE8ST150F41S08 16985483 30.0 – 120.0 150 M12 500 3.40 572 19 109 31 1/2" IC 12 Controller
QE8ST150F61S08 10568327IRI 30.0 – 120.0 150 M12 500 3.40 623 38 150 31 1/2" IC 12 Controller
QE8ST230F61S08 45497187 46.0 – 184.0 230 M18 340 5.50 710 38 150 36 1/2" IC 12 Controller
QE8ST230F62S12 18427674 46.0 – 184.0 230 M18 340 5.50 717 38 155 36 3/4" IC 12 Controller
QE8ST230F82S12 45601366 46.0 – 184.0 230 M18 340 5.50 768 38 155 36 3/4" IC 12 Controller Electric Tools
LEVER + PUSH START
QE2SP002P11Q04 46775037 0.3 – 1.6 2 M2 3000 0.60 250 22 1/4" IC 12 Controller
QE2SP002P11S04 46775045 0.3 – 1.6 2 M2 3000 0.60 242 22 1/4" IC 12 Controller
QE2SP003P11Q04 46775060 0.6 – 2.4 3 M2 2450 0.60 250 22 1/4" IC 12 Controller
QE2SP003P11S04 46775078 0.6 – 2.4 3 M2 2450 0.60 242 22 1/4" IC 12 Controller
QE2SP005P11Q04 46775094 1.0 – 4.0 5 M2 1700 0.60 250 22 1/4" IC 12 Controller
QE2SP005P11S04 46775102 1.0 – 4.0 5 M2 1700 0.60 242 22 1/4" IC 12 Controller
QE2SP007P11Q04 46775128 1.3 – 5.6 7 M2 1250 0.60 250 22 1/4" IC 12 Controller
QE2SP007P11S04 46775136 1.3 – 5.6 7 M2 1250 0.60 242 22 1/4" IC 12 Controller
QE2SP010P11Q04 46775151 2.0 – 8.0 10 M4 850 0.60 250 22 1/4" IC 12 Controller
QE2SP010P11S04 46775169 2.0 – 8.0 10 M4 850 0.60 242 22 1/4" IC 12 Controller
PUSH START
QE2TS002P11Q04 46775185 0.3 – 1.6 2 M2 3000 0.57 250 22 1/4" IC 12 Controller
QE2TS002P11S04 46775193 0.3 – 1.6 2 M2 3000 0.57 242 22 1/4" IC 12 Controller Air Tools Air Tools
QE2TS003P11Q04 46775219 0.6 – 2.4 3 M2 2450 0.57 250 22 1/4" IC 12 Controller
QE2TS003P11S04 46775227 0.6 – 2.4 3 M2 2450 0.57 242 22 1/4" IC 12 Controller
QE2TS005P11Q04 46775243 1.0 – 4.0 5 M2 1700 0.57 250 22 1/4" IC 12 Controller
QE2TS005P11S04 46775250 1.0 – 4.0 5 M2 1700 0.57 242 22 1/4" IC 12 Controller
QE2TS007P11Q04 46775276 1.3 – 5.6 7 M2 1250 0.57 250 22 1/4" IC 12 Controller
QE2TS007P11S04 46775284 1.3 – 5.6 7 M2 1250 0.57 242 22 1/4" IC 12 Controller
QE2TS010P11Q04 46775300 2.0 – 8.0 10 M4 850 0.57 250 22 1/4" IC 12 Controller
QE2TS010P11S04 46775318 2.0 – 8.0 10 M4 850 0.57 242 22 1/4" IC 12 Controller
QE4TS010R11Q04 16678955 2.0 – 8.0 10 M4 1820 1.20 363 25 1/4" IC 12 Controller
QE4TS010R11S04 16678963 2.0 – 8.0 10 M4 1820 1.20 343 25 1/4" IC 12 Controller
QE4TS010R11S06 16678971 2.0 – 8.0 10 M4 1820 1.20 343 25 3/8" IC 12 Controller
General Accessories General Accessories
QE4TS015R11Q04 18427278 3.0 – 12.0 15 M5 1220 1.20 363 25 1/4" IC 12 Controller
QE4TS015R11S04 16678989 3.0 – 12.0 15 M5 1220 1.20 343 25 1/4" IC 12 Controller
QE4TS015R11S06 16678997 3.0 – 12.0 15 M5 1220 1.20 343 25 3/8" IC 12 Controller
QE4TS020R11S06 16679003 4.0 – 16.0 20 M6 900 1.20 343 25 3/8" IC 12 Controller
QE4TS025R11S06 16679011 5.0 – 20.0 25 M6 710 1.20 343 25 3/8" IC 12 Controller

download.irtools.eu 35
